This message presents the estimated state of the vehicle.
EstimatedState is a complete description of the system in terms of parameters such as position, orientation and velocities at a particular moment in time.
The system position is given by a NorthEastDown (NED) local tangent plane displacement (x, y, z) relative to an absolute WGS84 coordinate (latitude, longitude, height above ellipsoid).

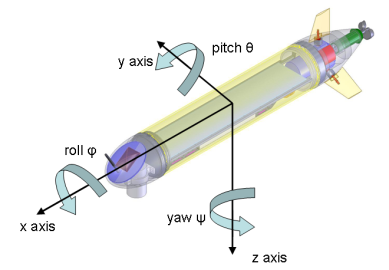

The symbols for position and attitude as well as linear and angular velocities were chosen according to SNAME’s notation (1950). The bodyfixed reference frame and Euler angles are depicted next:
align:  center

Euler angles
Name  Abbreviation  Unit  Type  Description  Range

Latitude (WGS84)  lat  rad  fp64_t  WGS84 Latitude.  Same as field type
Longitude (WGS84)  lon  rad  fp64_t  WGS84 Longitude.  Same as field type
Height (WGS84)  height  m  fp32_t  Height above the WGS84 ellipsoid.  Same as field type
Offset north  x  m  fp32_t  The North offset of the North/East/Down field with respect to LLH.  Same as field type
Offset east  y  m  fp32_t  The East offset of the North/East/Down field with respect to LLH.  Same as field type
Offset down  z  m  fp32_t  The Down offset of the North/East/Down field with respect to LLH.  Same as field type
Rotation over x axis  phi  rad  fp32_t  The phi Euler angle from the vehicle’s attitude.  Same as field type
Rotation over y axis  theta  rad  fp32_t  The theta Euler angle from the vehicle’s attitude.  Same as field type
Rotation over z axis  psi  rad  fp32_t  The psi Euler angle from the vehicle’s attitude.  Same as field type
BodyFixed xx Velocity  u  m/s  fp32_t  Bodyfixed frame xx axis velocity component.  Same as field type
BodyFixed yy Velocity  v  m/s  fp32_t  Bodyfixed frame yy axis velocity component.  Same as field type
BodyFixed zz Velocity  w  m/s  fp32_t  Bodyfixed frame zz axis velocity component.  Same as field type
Ground Velocity X (North)  vx  m/s  fp32_t  Ground Velocity xx axis velocity component.  Same as field type
Ground Velocity Y (East)  vy  m/s  fp32_t  Ground Velocity yy axis velocity component.  Same as field type
Ground Velocity Z (Down)  vz  m/s  fp32_t  Ground Velocity zz axis velocity component.  Same as field type
Angular Velocity in x  p  rad/s  fp32_t  The angular velocity over bodyfixed xx axis (roll).  Same as field type
Angular Velocity in y  q  rad/s  fp32_t  The angular velocity over bodyfixed yy axis (pitch).  Same as field type
Angular Velocity in z  r  rad/s  fp32_t  The angular velocity over bodyfixed zz axis (yaw).  Same as field type
Depth  depth  m  fp32_t  Depth, in meters. To be used by underwater vehicles. Negative values denote invalid estimates.  Same as field type
Altitude  alt  m  fp32_t  Altitude, in meters. Negative values denote invalid estimates.  Same as field type
The estimated stream velocity, typically for water or air streams.
Name  Abbreviation  Unit  Type  Description  Range

X component (North)  x  m/s  fp64_t  X component (North).  Same as field type
Y component (East)  y  m/s  fp64_t  Y component (East).  Same as field type
Z component (Down)  z  m/s  fp64_t  Z component (Down).  Same as field type
Speed measured by the navigation filter.
Name  Abbreviation  Unit  Type  Description  Range

Measured speed  value  m/s  fp64_t  Same as field type
Ground true speed.
Name  Abbreviation  Unit  Type  Description  Range

Estimated value  value  m/s  fp64_t  Same as field type
Report of navigation uncertainty. This is usually given by the output of the state covariance matrix of an Extended Kalman Filter.
Name  Abbreviation  Unit  Type  Description  Range

Variance  x Position  x  m  fp32_t

Same as field type
Variance  y Position  y  m  fp32_t

Same as field type
Variance  z Position  z  m  fp32_t

Same as field type
Variance  Roll  phi  rad  fp32_t  The phi Euler angle variance from the vehicle’s attitude.  Same as field type
Variance  Pitch  theta  rad  fp32_t  The theta Euler angle variance from the vehicle’s attitude.  Same as field type
Variance  Yaw  psi  rad  fp32_t  The psi Euler angle variance from the vehicle’s attitude.  Same as field type
Variance  Gyro. Roll Rate  p  rad/s  fp32_t  The angular velocity variance over bodyfixed xx axis (roll).  Same as field type
Variance  Gyro. Pitch Rate  q  rad/s  fp32_t  The angular velocity variance over bodyfixed yy axis (pitch).  Same as field type
Variance  Gyro. Yaw Rate  r  rad/s  fp32_t  The angular velocity variance over bodyfixed zz axis (yaw).  Same as field type
Variance  BodyFixed xx Velocity  u  m/s  fp32_t  Bodyfixed frame xx axis velocity variance component.  Same as field type
Variance  BodyFixed yy Velocity  v  m/s  fp32_t  Bodyfixed frame yy axis velocity variance component.  Same as field type
Variance  BodyFixed ww Velocity  w  m/s  fp32_t  Bodyfixed frame zz axis velocity variance component.  Same as field type
Variance  Yaw Bias  bias_psi  rad  fp32_t  The psi Euler angle bias variance from the vehicle’s sensed attitude.  Same as field type
Variance  Gyro. Yaw Rate Bias  bias_r  rad/s  fp32_t  The angular velocity over bodyfixed zz axis bias variance from sensor.  Same as field type
Report of navigation data. This is constituted by data which is not part of the vehicle estimated state but that the user may refer for more information.
Name  Abbreviation  Unit  Type  Description  Range

Yaw Bias  bias_psi  rad  fp32_t  The psi Euler angle bias from the vehicle’s sensed attitude.  Same as field type
Gyro. Yaw Rate Bias  bias_r  rad/s  fp32_t  The angular velocity over bodyfixed zz axis bias from sensor.  Same as field type
Course Over Ground  cog  rad  fp32_t  Course over ground given by NED ground velocity vectors.  Same as field type
Continuous Yaw  cyaw  rad  fp32_t  Continuous psi Euler angle (without normalizations).  Same as field type
GPS Rejection Filter Level  lbl_rej_level    fp32_t  GPS rejection filter level.  Same as field type
LBL Rejection Filter Level  gps_rej_level    fp32_t  LBL rejection filter level.  Same as field type
Variance  Custom Variable X  custom_x    fp32_t  Custom variable.  Same as field type
Variance  Custom Variable Y  custom_y    fp32_t  Custom variable.  Same as field type
Variance  Custom Variable Z  custom_z    fp32_t  Custom variable.  Same as field type
No description
Name  Abbreviation  Unit  Type  Description  Range

UTC Time of Fix  utc_time  s  fp32_t  UTC time of the rejected GPS fix measured in seconds since 00:00:00 (midnight).  Same as field type
Reason  reason  Enumerated  uint8_t  Reason for rejection.  Same as field type
When the vehicle uses Long Base Line navigation, this message notifies that a new range was received from one of the acoustics transponders. The message fields are used to identify the range value and the transponder name. Also, this message has an acceptance field that indicates whether a LBL range was accepted or rejected, and if rejected, the reason why.
Name  Abbreviation  Unit  Type  Description  Range

Beacon Identification Number  id    uint8_t  Identification number of the acoustic transponder from which the range information was received.  Same as field type
Range  range  m  fp32_t  Distance to the acoustic transponder.  Same as field type
Acceptance  acceptance  Enumerated  uint8_t  Reason for acceptance/rejection.  Same as field type
When the vehicle uses Doppler Velocity Log sensor, this message notifies that a new measurement was locally rejected by the navigation filter.
Name  Abbreviation  Unit  Type  Description  Range

Type of velocity  type  Bitfield  uint8_t  This field represents the type of the rejected velocity.  Same as field type
Reason  reason  Enumerated  uint8_t  Reason for rejection. There are two types of DVL measurement filters. An Innovation filter checks the innovation between the current measurement and the previous measurement within a certain amount of time and an Absolute filter compares the measurement with an absolute threshold value. Those filters are tested using horizontal speed measurements, i.e., measurements in the xaxis and in the yaxis.  Same as field type
Value  value  m/s  fp32_t  Value of the rejection. If it is an innovation rejection the value is the absolute difference between the previous accepted DVL measurement and the current one. If it is an absolute rejection the value is the current DVL measurement.  Same as field type
Timestep  timestep  s  fp32_t  Timestep of the rejection. The timestep is 0 for an absolute rejection since it is an instantaneous reading. For innovation rejection it is the time difference between the previous accepted DVL measurement and the current one.  Same as field type
LBL Beacon position estimate.
Name  Abbreviation  Unit  Type  Description  Range

LBL Beacon Configuration  beacon    message  LBL Beacon configuration estimate.  Same as field type
North position  x  m  fp32_t  The North position offset of the NED field with respect to origin.  Same as field type
East position  y  m  fp32_t  The East position offset of the NED field with respect to origin.  Same as field type
North position variance  var_x  m  fp32_t  The North offset variance of the North/East/Down field with respect to LLH.  Same as field type
East position variance  var_y  m  fp32_t  The East offset variance of the North/East/Down field with respect to LLH.  Same as field type
Distance  distance  m  fp32_t  Distance between current LBL Beacon position and filter estimation.  Same as field type
This message notifies the vehicle is ready for deadreckoning missions.
Name  Abbreviation  Unit  Type  Description  Range

State  state  Enumerated  uint8_t  Alignment State.  Same as field type
The stream velocity estimated by a group of systems. Typically for water or air streams.
Name  Abbreviation  Unit  Type  Description  Range

X component (North)  x  m/s  fp64_t  X component (North).  Same as field type
Y component (East)  y  m/s  fp64_t  Y component (East).  Same as field type
Z component (Down)  z  m/s  fp64_t  Z component (Down).  Same as field type
Airspeed along with airflow angles.
Name  Abbreviation  Unit  Type  Description  Range

Airspeed  va  m/s  fp32_t  Airspeed, the 2norm of the relative velocity.  Same as field type
Angle of attack  aoa  rad  fp32_t  Angle of attack.  Same as field type
Sideslip angle  ssa  rad  fp32_t  Sideslip angle.  Same as field type
