DUNE: Uniform Navigational Environment  2.3.0
Monitors::Entities::Task Struct Reference

Public Types

typedef std::set< uint8_t > EIdSet

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}


Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceInitialization (void)

void onEntityResolution (void)

void setupDefaults (const std::vector< std::string > &ents)

void consume (const IMC::EntityState *msg)

void onReportEntityState (void)

void consume (const IMC::MonitorEntityState *mes)

void enableDefaults (bool startup=false)

void enable (uint8_t eid, bool startup=false)

void disable (uint8_t eid)

void activate (const std::string &enames, uint8_t cmd)

void reportState (void)

void onTimeoutCheck (void)

void setLastError (std::string msg)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

IMC::EntityMonitoringState m_ems

std::vector< ESRecordm_record

EIdSet m_current

EIdSet m_defaults

Arguments m_args


Additional Inherited Members

- Static Public Member Functions inherited from DUNE::Concurrency::Thread
static unsigned native (void)

- Protected Member Functions inherited from DUNE::Tasks::Task
const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

bool stopping (void)

bool isActive (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual void onEntityReservation (void)

virtual void onResourceAcquisition (void)

virtual void onResourceRelease (void)

virtual void onUpdateParameters (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx


Member Typedef Documentation

typedef std::set<uint8_t> Monitors::Entities::Task::EIdSet

Type to store all Entity Ids.

Constructor & Destructor Documentation

Member Function Documentation

void Monitors::Entities::Task::activate ( const std::string &  enames,
uint8_t  cmd
)
inline

Activate monitorings.

Parameters
[in]enamesentity names
[in]cmdentity state monitoring command

References disable(), enable(), DUNE::Tasks::Task::inf(), m_current, DUNE::Tasks::Task::resolveEntity(), and DUNE::Utils::String::split().

void Monitors::Entities::Task::consume ( const IMC::MonitorEntityState *  mes)
inline
void Monitors::Entities::Task::disable ( uint8_t  eid)
inline

Disable monitoring for an entity.

Parameters
[in]eidentity ID

References DUNE::Tasks::Task::inf(), Monitors::Entities::ESRecord::label, m_current, m_record, and Monitors::Entities::ESRecord::monitor.

Referenced by activate(), and enableDefaults().

void Monitors::Entities::Task::enable ( uint8_t  eid,
bool  startup = false
)
inline

Enable monitoring for an entity.

Parameters
[in]eidentity ID
[in]startuptrue if task is just starting

References DUNE::Tasks::Task::err(), DUNE::Tasks::Task::inf(), Monitors::Entities::ESRecord::label, m_current, m_record, Monitors::Entities::ESRecord::monitor, and Monitors::Entities::ESRecord::state.

Referenced by activate(), and enableDefaults().

void Monitors::Entities::Task::enableDefaults ( bool  startup = false)
inline

Enable configuration defaults.

Parameters
[in]startuptrue if the task is just starting

References DUNE::Tasks::Task::debug(), disable(), enable(), m_current, m_defaults, and m_ems.

Referenced by consume(), and onEntityResolution().

void Monitors::Entities::Task::onEntityResolution ( void  )
inlinevirtual

Called when the task is instructed to resolve all the entity identifiers it needs for normal execution.

See resolveEntity(). Derived classes that need to resolve entity identifiers should override this function.

Reimplemented from DUNE::Tasks::Task.

References DUNE::Tasks::EntityDataBase::contents(), Monitors::Entities::Arguments::defmon, Monitors::Entities::Arguments::defmon_hw, enableDefaults(), DUNE::Tasks::Context::entities, DUNE::Tasks::Profiles::isSelected(), m_args, DUNE::Tasks::Task::m_ctx, m_record, DUNE::Tasks::Context::profiles, setupDefaults(), and DUNE::Tasks::Task::trace().

void Monitors::Entities::Task::onMain ( void  )
inlinevirtual
void Monitors::Entities::Task::onReportEntityState ( void  )
inlinevirtual

Called when the task is instructed to report the state of its entities.

Derived classes that need to report the state of entities other than the main entity should override this function to dispatch the EntityState of those entities.

Reimplemented from DUNE::Tasks::Task.

References onTimeoutCheck(), and reportState().

void Monitors::Entities::Task::onResourceInitialization ( void  )
inlinevirtual

Called when the task is instructed to initialize resources acquired previously or whose initialization depends on run-time parameters.

Reimplemented from DUNE::Tasks::Task.

References DUNE::Tasks::Task::setEntityState().

void Monitors::Entities::Task::reportState ( void  )
inline
void Monitors::Entities::Task::setLastError ( std::string  msg)
inline

Setting last monitoring state error.

Parameters
[in]msgerror message

References m_ems.

Referenced by consume(), and onTimeoutCheck().

void Monitors::Entities::Task::setupDefaults ( const std::vector< std::string > &  ents)
inline

Fill default entities vector.

Parameters
[in]entsvector of entity labels

References DUNE::Tasks::Task::err(), m_defaults, and DUNE::Tasks::Task::resolveEntity().

Referenced by onEntityResolution().

Member Data Documentation

Arguments Monitors::Entities::Task::m_args
EIdSet Monitors::Entities::Task::m_current

Ids of all currently monitored entities.

Referenced by activate(), disable(), enable(), enableDefaults(), and reportState().

EIdSet Monitors::Entities::Task::m_defaults

Ids of monitored entities for default settings.

Referenced by enableDefaults(), and setupDefaults().

IMC::EntityMonitoringState Monitors::Entities::Task::m_ems

Entity Monitoring State message.

Referenced by enableDefaults(), reportState(), and setLastError().

std::vector<ESRecord> Monitors::Entities::Task::m_record

Record of all available entity information.

Referenced by consume(), disable(), enable(), onEntityResolution(), onTimeoutCheck(), and reportState().

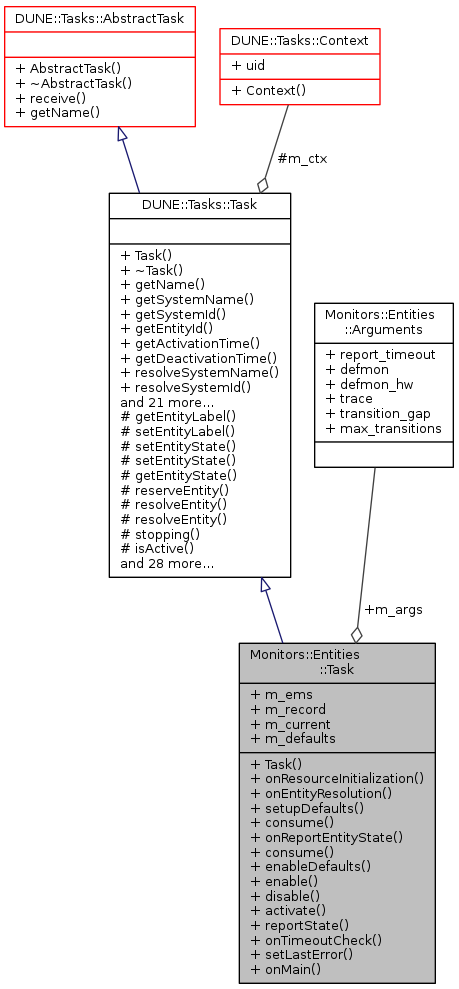

Collaboration diagram for Monitors::Entities::Task:
Collaboration graph
