DUNE: Uniform Navigational Environment  2.4.0
DUNE::IMC::LeaderState Class Reference

Detailed Description

Leader State.

Public Types

enum  ActionontheleaderstateEnum { OP_REQUEST, OP_SET, OP_REPORT }


Public Member Functions

 LeaderState (void)

Messageclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

unsigned getVariableSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

std::string group_name

uint8_t op

fp64_t lat

fp64_t lon

fp32_t height

fp32_t x

fp32_t y

fp32_t z

fp32_t phi

fp32_t theta

fp32_t psi

fp32_t vx

fp32_t vy

fp32_t vz

fp32_t p

fp32_t q

fp32_t r

fp32_t svx

fp32_t svy

fp32_t svz


Additional Inherited Members

- Protected Member Functions inherited from DUNE::IMC::Message
virtual void setTimeStampNested (double value)

virtual void setSourceNested (uint16_t value)

virtual void setSourceEntityNested (uint8_t value)

virtual void setDestinationNested (uint16_t value)

virtual void setDestinationEntityNested (uint8_t value)

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Member Enumeration Documentation

Action on the leader state.

Enumerator
OP_REQUEST

Request.

OP_SET

Set.

OP_REPORT

Report.

Constructor & Destructor Documentation

DUNE::IMC::LeaderState::LeaderState ( void  )

Member Function Documentation

void DUNE::IMC::LeaderState::clear ( void  )
virtual

Reset message's fields.

Implements DUNE::IMC::Message.

References group_name, height, lat, lon, op, p, phi, psi, q, r, svx, svy, svz, theta, vx, vy, vz, x, y, and z.

Referenced by LeaderState().

Message* DUNE::IMC::LeaderState::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References LeaderState().

uint16_t DUNE::IMC::LeaderState::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::deserialize(), group_name, height, lat, lon, op, p, phi, psi, q, r, svx, svy, svz, theta, vx, vy, vz, x, y, and z.

bool DUNE::IMC::LeaderState::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References group_name, height, lat, lon, op, p, phi, psi, q, r, svx, svy, svz, theta, vx, vy, vz, x, y, and z.

void DUNE::IMC::LeaderState::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References group_name, height, lat, lon, op, p, phi, psi, q, r, svx, svy, svz, theta, DUNE::IMC::toJSON(), vx, vy, vz, x, y, and z.

unsigned DUNE::IMC::LeaderState::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::LeaderState::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::LeaderState::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::LeaderState::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::LeaderState::getVariableSerializationSize ( void  ) const
inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References DUNE::IMC::getSerializationSize(), and group_name.

uint16_t DUNE::IMC::LeaderState::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::deserialize(), group_name, height, lat, lon, op, p, phi, psi, q, r, DUNE::IMC::reverseDeserialize(), svx, svy, svz, theta, vx, vy, vz, x, y, and z.

uint8_t * DUNE::IMC::LeaderState::serializeFields ( uint8_t *  bfr__) const
virtual

Implements DUNE::IMC::Message.

References group_name, height, lat, lon, op, p, phi, psi, q, r, DUNE::IMC::serialize(), svx, svy, svz, theta, vx, vy, vz, x, y, and z.

int DUNE::IMC::LeaderState::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

std::string DUNE::IMC::LeaderState::group_name
fp32_t DUNE::IMC::LeaderState::height
fp64_t DUNE::IMC::LeaderState::lat
fp64_t DUNE::IMC::LeaderState::lon
uint8_t DUNE::IMC::LeaderState::op
fp32_t DUNE::IMC::LeaderState::p
fp32_t DUNE::IMC::LeaderState::phi
fp32_t DUNE::IMC::LeaderState::psi
fp32_t DUNE::IMC::LeaderState::q
fp32_t DUNE::IMC::LeaderState::r
fp32_t DUNE::IMC::LeaderState::svx
fp32_t DUNE::IMC::LeaderState::svy
fp32_t DUNE::IMC::LeaderState::svz
fp32_t DUNE::IMC::LeaderState::theta
fp32_t DUNE::IMC::LeaderState::vx
fp32_t DUNE::IMC::LeaderState::vy
fp32_t DUNE::IMC::LeaderState::vz
fp32_t DUNE::IMC::LeaderState::x
fp32_t DUNE::IMC::LeaderState::y
fp32_t DUNE::IMC::LeaderState::z

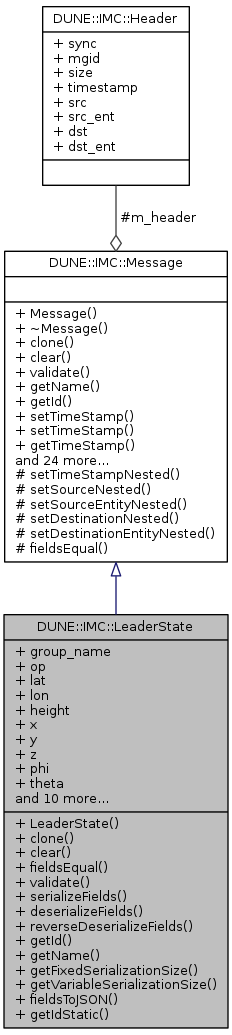

Collaboration diagram for DUNE::IMC::LeaderState:
Collaboration graph
