Simulators::VSIM::ASV Class Reference

Detailed Description

ASV Autonomous Surface Vehicle simulator.

Public Member Functions

 ASV (void)

 ASV (double[3])

 ASV (const ASV *)

 ~ASV (void)

void applyForces (void)

void applyAsvActuation (void)

void updateActuation (int id)

- Public Member Functions inherited from Simulators::VSIM::Vehicle
 Vehicle (void)

virtual ~Vehicle (void)

void addForce (Force *force)

void addEngine (Engine *engine)

void applyControlForces (void)

void applyForces (void)

void updateact (unsigned int id, double act)

void updateEngine (unsigned int id, double act)

virtual void setAddedMassCoef (double coefs[6])

virtual void setBodyLiftCoef (double coefs[8])

- Public Member Functions inherited from Simulators::VSIM::Object
 Object (void)

virtual ~Object (void)

void setMassProp (double m, double inertia[6])

void setLinearDragCoef (double coefs[10])

void setQuadraticDragCoef (double coefs[10])

void setIntegrationMethod (bool method)

virtual void insertInWorld (void)

virtual void setPosition (double x, double y, double z)

virtual void setOrientation (double roll, double pitch, double yaw)

double * getPosition (void)

double * getOrientation (void)

double * getLinearVelocity (void)

double * getAngularVelocity (void)

void applyDragForces (void)

void addForces (double X, double Y, double Z, double P, double Q, double R)

void resetForces (void)

void update (double timestep)


Additional Inherited Members

- Public Types inherited from Simulators::VSIM::Object
enum  Type {
  OBJECT, VEHICLE, UUV, UAV,
  USV, UGV
}

- Public Attributes inherited from Simulators::VSIM::Vehicle
std::list< Force * > m_vehicle_forces

- Protected Attributes inherited from Simulators::VSIM::Object
double m_mass

double m_inertia [6]

double m_position [3]

double m_orientation [3]

double m_linear_velocity [3]

double m_angular_velocity [3]


Constructor & Destructor Documentation

Simulators::VSIM::ASV::ASV ( void  )

Default Constructor.

Simulators::VSIM::ASV::ASV ( double  dimensions[3])

Constructor.

Parameters
[in]dimensionsof the vehicle.
Simulators::VSIM::ASV::ASV ( const ASV )

Copy Constructor.

Simulators::VSIM::ASV::~ASV ( void  )

Destructor.

Member Function Documentation

void Simulators::VSIM::ASV::applyAsvActuation ( void  )

Apply ASV specific actuation.

References Simulators::VSIM::Object::addForces(), and updateActuation().

Referenced by applyForces().

void Simulators::VSIM::ASV::applyForces ( void  )
virtual
void Simulators::VSIM::ASV::updateActuation ( int  id)

Update ASV actiation.

Parameters
[in]idvehicle id.

References Simulators::VSIM::Vehicle::m_vehicle_forces.

Referenced by applyAsvActuation().

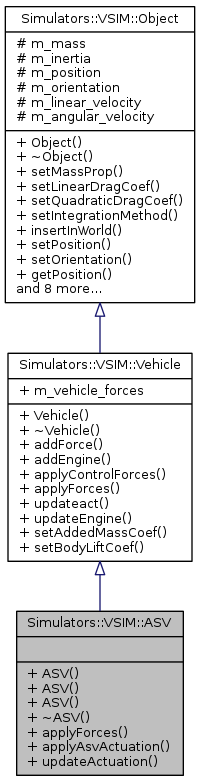

Collaboration diagram for Simulators::VSIM::ASV:
Collaboration graph
