DUNE: Uniform Navigational Environment  2.6.1
Sensors::Microstrain3DMGX1::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceAcquisition (void)

void onResourceInitialization (void)

void onResourceRelease (void)

int8_t getCommandDataSize (uint8_t id)

bool setup (void)

bool getMessage (CommandByte type, fp64_t maxwait=1.0)

void clear (void)

fp64_t updateTimerCount (uint8_t *data)

CommandByte parse (uint8_t byte)

void setContinuousMode (CommandByte msg=MSG_NULL)

void queryEEPROM (uint16_t address)

void requestMessage (CommandByte command)

bool validateCheckSum (const uint8_t *bfr, unsigned int size)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

SerialPort * m_uart

IMC::EulerAngles m_euler

IMC::AngularVelocity m_agvel

IMC::Acceleration m_accel

FSMStates m_state

int m_togo

int m_done

uint8_t m_data [32]

fp64_t m_accel_scale

fp64_t m_gyro_scale

int16_t m_eeprom

fp64_t m_timer

uint16_t m_last_tick

Arguments m_args

Counter< double > m_wdog


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}

- Protected Member Functions inherited from DUNE::Tasks::Task
const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual void onEntityReservation (void)

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onUpdateParameters (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx

std::vector
< Entities::BasicEntity * >
m_entities


Constructor & Destructor Documentation

Member Function Documentation

void Sensors::Microstrain3DMGX1::Task::clear ( void  )
inline
bool Sensors::Microstrain3DMGX1::Task::getMessage ( CommandByte  type,
fp64_t  maxwait = 1.0
)
inline

References m_uart, and parse().

Referenced by setup().

void Sensors::Microstrain3DMGX1::Task::onResourceAcquisition ( void  )
inlinevirtual

Called when the task is instructed to acquire resources whose configuration is defined by run-time parameters.

Reimplemented from DUNE::Tasks::Task.

References m_args, m_uart, Sensors::Microstrain3DMGX1::Arguments::uart_baud, and Sensors::Microstrain3DMGX1::Arguments::uart_dev.

void Sensors::Microstrain3DMGX1::Task::onResourceInitialization ( void  )
inlinevirtual

Called when the task is instructed to initialize resources acquired previously or whose initialization depends on run-time parameters.

Reimplemented from DUNE::Tasks::Task.

References Sensors::Microstrain3DMGX1::Arguments::data_tout, m_args, m_wdog, and DUNE::Time::Counter< T >::setTop().

void Sensors::Microstrain3DMGX1::Task::onResourceRelease ( void  )
inlinevirtual

Called when the task is instructed to release resources.

Derived classes that override this function must not assume that any resource was previously acquired. This function must be implemented in such a way that it can be called at any time.

Reimplemented from DUNE::Tasks::Task.

References m_uart.

void Sensors::Microstrain3DMGX1::Task::queryEEPROM ( uint16_t  address)
inline

References m_uart, and Sensors::Microstrain3DMGX1::MSG_EEPROM.

Referenced by setup().

void Sensors::Microstrain3DMGX1::Task::requestMessage ( CommandByte  command)
inline

References m_uart.

Referenced by parse().

void Sensors::Microstrain3DMGX1::Task::setContinuousMode ( CommandByte  msg = MSG_NULL)
inline

References m_uart, and Sensors::Microstrain3DMGX1::MSG_CONTMODE.

Referenced by setup().

fp64_t Sensors::Microstrain3DMGX1::Task::updateTimerCount ( uint8_t *  data)
inline

References m_last_tick, and m_timer.

Referenced by parse().

bool Sensors::Microstrain3DMGX1::Task::validateCheckSum ( const uint8_t *  bfr,
unsigned int  size
)
inline

References DUNE::Math::sum().

Referenced by parse().

Member Data Documentation

IMC::Acceleration Sensors::Microstrain3DMGX1::Task::m_accel

Referenced by parse().

fp64_t Sensors::Microstrain3DMGX1::Task::m_accel_scale

Referenced by parse(), and setup().

IMC::AngularVelocity Sensors::Microstrain3DMGX1::Task::m_agvel

Referenced by parse().

Arguments Sensors::Microstrain3DMGX1::Task::m_args
uint8_t Sensors::Microstrain3DMGX1::Task::m_data[32]

Referenced by parse().

int Sensors::Microstrain3DMGX1::Task::m_done

Referenced by clear(), and parse().

int16_t Sensors::Microstrain3DMGX1::Task::m_eeprom

Referenced by parse(), and setup().

IMC::EulerAngles Sensors::Microstrain3DMGX1::Task::m_euler

Referenced by parse().

fp64_t Sensors::Microstrain3DMGX1::Task::m_gyro_scale

Referenced by parse(), and setup().

uint16_t Sensors::Microstrain3DMGX1::Task::m_last_tick

Referenced by updateTimerCount().

FSMStates Sensors::Microstrain3DMGX1::Task::m_state

Referenced by clear(), and parse().

fp64_t Sensors::Microstrain3DMGX1::Task::m_timer

Referenced by updateTimerCount().

int Sensors::Microstrain3DMGX1::Task::m_togo

Referenced by clear(), and parse().

SerialPort* Sensors::Microstrain3DMGX1::Task::m_uart
Counter<double> Sensors::Microstrain3DMGX1::Task::m_wdog

Referenced by onMain(), and onResourceInitialization().

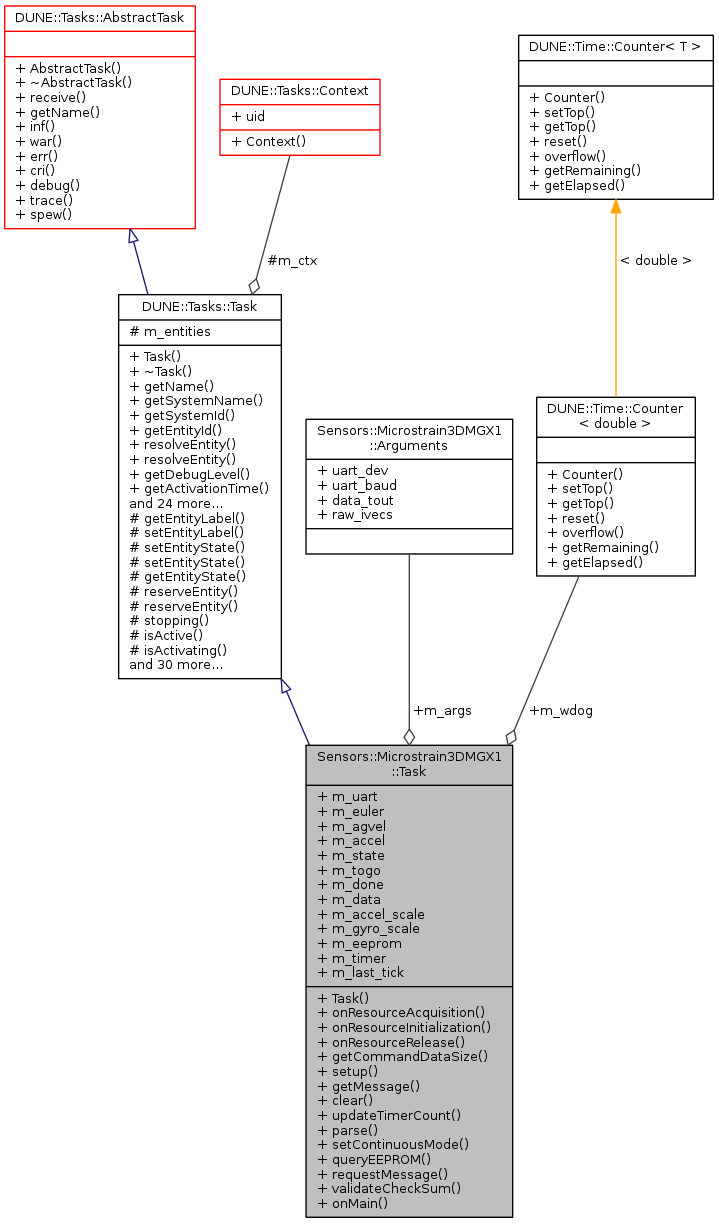

Collaboration diagram for Sensors::Microstrain3DMGX1::Task:
Collaboration graph
