Sensors::Imagenex837B::Frame837 Class Reference

Detailed Description

Data logger to Imagenex .837 format.

Public Types
enum	HeaderIndices {   HDR_IDX_N_TO_READ, HDR_IDX_BYTES_TO_READ_HI, HDR_IDX_BYTES_TO_READ_LO, HDR_IDX_VIDEO_FRAME,   HDR_IDX_DISPLAY_MODE, HDR_IDX_START_GAIN, HDR_IDX_TILT_ANGLE, HDR_IDX_PINGS_AVG,   HDR_IDX_PULSE_LENGTH, HDR_IDX_SOUND_SPEED, HDR_IDX_LATITUDE, HDR_IDX_LONGITUDE,   HDR_IDX_SPEED, HDR_IDX_COURSE, HDR_IDX_FREQUENCY, HDR_IDX_PITCH,   HDR_IDX_ROLL, HDR_IDX_HEADING, HDR_IDX_REP_RATE, HDR_IDX_DISPLAY_GAIN,   HDR_IDX_MILLI, HDR_IDX_MODE_I, HDR_IDX_MODE_UV, HDR_IDX_MODE_X,   HDR_IDX_HEAD_ID, HDR_IDX_SERIAL_STATUS, HDR_IDX_PACKET_NUM, HDR_IDX_VERSION,   HDR_IDX_RANGE, HDR_IDX_DATA_BYTES_HI, HDR_IDX_DATA_BYTES_LO }
Public Types inherited from Sensors::Imagenex837B::Frame
enum	HeaderIndices {   HDR_IDX_TBYTES_HI, HDR_IDX_TBYTES_LO, HDR_IDX_DATE, HDR_IDX_TIME,   HDR_IDX_TIME_HSEC }
enum	FooterIndices {   FTR_IDX_TYPE, FTR_IDX_PITCH, FTR_IDX_ROLL, FTR_IDX_HEADING,   FTR_IDX_AZIMUTH_UP }

Public Member Functions
	Frame837 (void)
	~Frame837 (void)
uint8_t *	getMessageData (void)
uint8_t *	getFooterData (void)
size_t	getSize (void) const
size_t	getMessageSize (void) const
size_t	getFooterSize (void) const
void	setTotalBytes (void)
void	setBytesToRead (void)
void	setExtendedDataPoints (bool mode)
void	setStartGain (uint8_t gain)
void	setPulseLength (uint8_t length)
void	setDisplayMode (bool xdcr)
void	setDisplayGain (uint8_t gain)
void	setSerialStatus (uint8_t status)
void	setFirmwareVersion (uint8_t version)
void	setRepRate (void)
unsigned	getIndexRange (void)
unsigned	getIndexTiltAngle (void)
unsigned	getIndexLatitude (void)
unsigned	getIndexLongitude (void)
unsigned	getIndexSpeed (void)
unsigned	getIndexSoundSpeed (void)
unsigned	getIndexCourse (void)
unsigned	getIndexMilli (void)
unsigned	getIndexRoll (void)
unsigned	getIndexPitch (void)
unsigned	getIndexHeading (void)
unsigned	getIndexRepRate (void)
unsigned	getIndexFrequency (void)
Public Member Functions inherited from Sensors::Imagenex837B::Frame
	Frame (void)
virtual	~Frame (void)
uint8_t *	getData (void)
virtual void	setRange (uint8_t range)
void	setProfileTiltAngle (float angle)
void	setSoundVelocity (float speed)
void	setSpeed (float speed)
void	setCourse (float course)
void	setRoll (float roll)
void	setPitch (float pitch)
void	setHeading (float heading)
void	setRepRate (uint16_t rate)
void	setGpsData (double lat, double lon)
void	setDateTime (uint64_t now)

Additional Inherited Members
Protected Member Functions inherited from Sensors::Imagenex837B::Frame
void	setFrequency (void)
Protected Attributes inherited from Sensors::Imagenex837B::Frame
std::vector< uint8_t >	m_data

Member Enumeration Documentation

enum Sensors::Imagenex837B::Frame837::HeaderIndices

837 Header Indices.

Enumerator
HDR_IDX_N_TO_READ
HDR_IDX_BYTES_TO_READ_HI
HDR_IDX_BYTES_TO_READ_LO
HDR_IDX_VIDEO_FRAME
HDR_IDX_DISPLAY_MODE
HDR_IDX_START_GAIN
HDR_IDX_TILT_ANGLE
HDR_IDX_PINGS_AVG
HDR_IDX_PULSE_LENGTH
HDR_IDX_SOUND_SPEED
HDR_IDX_LATITUDE
HDR_IDX_LONGITUDE
HDR_IDX_SPEED
HDR_IDX_COURSE
HDR_IDX_FREQUENCY
HDR_IDX_PITCH
HDR_IDX_ROLL
HDR_IDX_HEADING
HDR_IDX_REP_RATE
HDR_IDX_DISPLAY_GAIN
HDR_IDX_MILLI
HDR_IDX_MODE_I
HDR_IDX_MODE_UV
HDR_IDX_MODE_X
HDR_IDX_HEAD_ID
HDR_IDX_SERIAL_STATUS
HDR_IDX_PACKET_NUM
HDR_IDX_VERSION
HDR_IDX_RANGE
HDR_IDX_DATA_BYTES_HI
HDR_IDX_DATA_BYTES_LO

Constructor & Destructor Documentation

Sensors::Imagenex837B::Frame837::Frame837 ( void  )

inline

Constructor.

References Sensors::Imagenex837B::Frame::m_data.

Sensors::Imagenex837B::Frame837::~Frame837 ( void  )

inline

Destructor.

Member Function Documentation

uint8_t* Sensors::Imagenex837B::Frame837::getFooterData ( void  )

inlinevirtual

Get footer start address.

Returns

pointer to address.

Reimplemented from Sensors::Imagenex837B::Frame.

References getMessageSize(), and Sensors::Imagenex837B::Frame::m_data.

size_t Sensors::Imagenex837B::Frame837::getFooterSize ( void  ) const

inlinevirtual

Retrieve footer size.

Returns

footer size.

Reimplemented from Sensors::Imagenex837B::Frame.

Referenced by getSize().

unsigned Sensors::Imagenex837B::Frame837::getIndexCourse ( void  )

inlinevirtual

Get course index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_COURSE.

unsigned Sensors::Imagenex837B::Frame837::getIndexFrequency ( void  )

inlinevirtual

Get frequency index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_FREQUENCY.

unsigned Sensors::Imagenex837B::Frame837::getIndexHeading ( void  )

inlinevirtual

Get heading index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_HEADING.

unsigned Sensors::Imagenex837B::Frame837::getIndexLatitude ( void  )

inlinevirtual

Get latitude index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_LATITUDE.

unsigned Sensors::Imagenex837B::Frame837::getIndexLongitude ( void  )

inlinevirtual

Get longitude index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_LONGITUDE.

unsigned Sensors::Imagenex837B::Frame837::getIndexMilli ( void  )

inlinevirtual

Get milliseconds index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_MILLI.

unsigned Sensors::Imagenex837B::Frame837::getIndexPitch ( void  )

inlinevirtual

Get pitch index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_PITCH.

unsigned Sensors::Imagenex837B::Frame837::getIndexRange ( void  )

inlinevirtual

Get range index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_RANGE.

unsigned Sensors::Imagenex837B::Frame837::getIndexRepRate ( void  )

inlinevirtual

Get repetition rate index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_REP_RATE.

unsigned Sensors::Imagenex837B::Frame837::getIndexRoll ( void  )

inlinevirtual

Get roll index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_ROLL.

unsigned Sensors::Imagenex837B::Frame837::getIndexSoundSpeed ( void  )

inlinevirtual

Get speed index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_SOUND_SPEED.

unsigned Sensors::Imagenex837B::Frame837::getIndexSpeed ( void  )

inlinevirtual

Get speed index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_SPEED.

unsigned Sensors::Imagenex837B::Frame837::getIndexTiltAngle ( void  )

inlinevirtual

Get tilt angle index.

Implements Sensors::Imagenex837B::Frame.

References HDR_IDX_TILT_ANGLE.

uint8_t* Sensors::Imagenex837B::Frame837::getMessageData ( void  )

inlinevirtual

Get data start address.

Returns

pointer to address.

Reimplemented from Sensors::Imagenex837B::Frame.

References Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::ping().

size_t Sensors::Imagenex837B::Frame837::getMessageSize ( void  ) const

inlinevirtual

Retrieve message size.

Returns

message size.

Reimplemented from Sensors::Imagenex837B::Frame.

Referenced by getFooterData(), and getSize().

size_t Sensors::Imagenex837B::Frame837::getSize ( void  ) const

inlinevirtual

Retrieve the size of the frame.

Returns

frame size.

Reimplemented from Sensors::Imagenex837B::Frame.

References getFooterSize(), and getMessageSize().

Referenced by Sensors::Imagenex837B::Task::writeToFile().

void Sensors::Imagenex837B::Frame837::setBytesToRead ( void  )

inline

Define number of bytes to read in header.

References HDR_IDX_BYTES_TO_READ_HI, HDR_IDX_BYTES_TO_READ_LO, and Sensors::Imagenex837B::Frame::m_data.

Referenced by setExtendedDataPoints().

void Sensors::Imagenex837B::Frame837::setDisplayGain ( uint8_t  gain )

inline

Set display gain.

Parameters

[in]

gain

display gain.

References HDR_IDX_DISPLAY_GAIN, and Sensors::Imagenex837B::Frame::m_data.

void Sensors::Imagenex837B::Frame837::setDisplayMode ( bool  xdcr )

inline

Set display mode.

Parameters

[in]

xdcr

display mode.

References HDR_IDX_DISPLAY_MODE, and Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::setNadirAngle().

void Sensors::Imagenex837B::Frame837::setExtendedDataPoints ( bool  mode )

inlinevirtual

Change mode according with data points.

Reimplemented from Sensors::Imagenex837B::Frame.

References setBytesToRead(), and setTotalBytes().

Referenced by Sensors::Imagenex837B::Task::setDataPoints().

void Sensors::Imagenex837B::Frame837::setFirmwareVersion ( uint8_t  version )

inline

Set Firmware version.

References HDR_IDX_VERSION, and Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::writeToFile().

void Sensors::Imagenex837B::Frame837::setPulseLength ( uint8_t  length )

inline

Set pulse length.

Parameters

[in]

length

pulse length.

References HDR_IDX_PULSE_LENGTH, and Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::setRange().

void Sensors::Imagenex837B::Frame837::setRepRate ( void  )

inline

Set repetition rate using local Delta class.

References Sensors::Imagenex837B::Frame::setRepRate(), and DUNE::Math::trimValue().

Referenced by Sensors::Imagenex837B::Task::writeToFile().

void Sensors::Imagenex837B::Frame837::setSerialStatus ( uint8_t  status )

inline

Set serial status.

References HDR_IDX_SERIAL_STATUS, and Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::writeToFile().

void Sensors::Imagenex837B::Frame837::setStartGain ( uint8_t  gain )

inline

Set start gain.

Parameters

[in]

gain

start gain.

References HDR_IDX_START_GAIN, and Sensors::Imagenex837B::Frame::m_data.

Referenced by Sensors::Imagenex837B::Task::setStartGain().

void Sensors::Imagenex837B::Frame837::setTotalBytes ( void  )

inline

Define total bytes in header.

References Sensors::Imagenex837B::Frame::HDR_IDX_TBYTES_HI, Sensors::Imagenex837B::Frame::HDR_IDX_TBYTES_LO, and Sensors::Imagenex837B::Frame::m_data.

Referenced by setExtendedDataPoints().

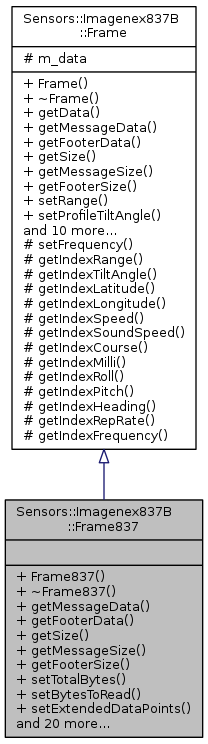

Collaboration diagram for Sensors::Imagenex837B::Frame837:
