Control::AUV::Attitude::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceInitialization (void)

void onResourceAcquisition (void)

void onResourceRelease (void)

void onAutopilotActivation (void)

void onAutopilotDeactivation (void)

void onUpdateParameters (void)

void initializePIDs (void)

void reset (void)

void onEntityReservation (void)

void onEstimatedState (const double timestep, const IMC::EstimatedState *msg)

float depthControl (const double timestep, const IMC::EstimatedState *msg)

float rollControl (const double timestep, const IMC::EstimatedState *msg)

float headingControl (const double timestep, const IMC::EstimatedState *msg)

- Public Member Functions inherited from DUNE::Control::BasicAutopilot
 BasicAutopilot (const std::string &name, Tasks::Context &ctx, const uint32_t controllable_loops, const uint32_t required_loops)

virtual ~BasicAutopilot (void)

virtual void onEstimatedState (const double timestep, const IMC::EstimatedState *msg)=0

void consume (const IMC::EstimatedState *msg)

void consume (const IMC::DesiredZ *msg)

void consume (const IMC::DesiredPitch *msg)

void consume (const IMC::DesiredHeading *msg)

void consume (const IMC::DesiredHeadingRate *msg)

void consume (const IMC::ControlLoops *msg)

void consume (const IMC::DesiredVelocity *msg)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

DiscretePID m_pid [LP_MAX_LOOPS]

IMC::DesiredHeadingRate m_hrate_ref

IMC::DesiredPitch m_pitch_ref

IMC::ControlParcel m_parcels [LP_MAX_LOOPS]

CoarseAltitude::Arguments m_ca_args

CoarseAltitude * m_ca

IMC::ControlParcel m_ca_parcel

Arguments m_args


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}

- Protected Types inherited from DUNE::Control::BasicAutopilot
enum  VerticalMode {
  VERTICAL_MODE_NONE, VERTICAL_MODE_DEPTH, VERTICAL_MODE_ALTITUDE, VERTICAL_MODE_PITCH,
  VERTICAL_MODE_HEAVE, VERTICAL_MODE_SIZE
}

enum  YawMode {
  YAW_MODE_NONE, YAW_MODE_HEADING, YAW_MODE_HRATE, YAW_MODE_BYPASS,
  YAW_MODE_SIZE
}

- Protected Member Functions inherited from DUNE::Control::BasicAutopilot
void onDeactivation (void)

void onActivation (void)

void signalBadYaw (const char *desc=DTR("yaw control mode %d not supported"))

void signalBadVertical (const char *desc=DTR("vertical control mode %d not supported"))

float getVerticalRef (void) const

VerticalMode getVerticalMode (void) const

float getYawRef (void) const

YawMode getYawMode (void) const

float getSurgeRef (void) const

float getSwayRef (void) const

float getBottomFollowDepth (void) const

- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual bool onWriteParamsXML (std::ostream &os) const

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)

virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)

virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)

virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx

std::vector
< Entities::BasicEntity * >
m_entities


Constructor & Destructor Documentation

Member Function Documentation

void Control::AUV::Attitude::Task::onAutopilotActivation ( void  )
inlinevirtual

On activation.

Reimplemented from DUNE::Control::BasicAutopilot.

References m_ca.

void Control::AUV::Attitude::Task::onAutopilotDeactivation ( void  )
inlinevirtual

On deactivation.

Reimplemented from DUNE::Control::BasicAutopilot.

References m_ca.

void Control::AUV::Attitude::Task::onEntityReservation ( void  )
inlinevirtual
void Control::AUV::Attitude::Task::onEstimatedState ( const double  timestep,
const IMC::EstimatedState *  msg
)
inline
void Control::AUV::Attitude::Task::onResourceAcquisition ( void  )
inlinevirtual

Acquire resources.

Reimplemented from DUNE::Control::BasicAutopilot.

References m_ca, and m_ca_args.

void Control::AUV::Attitude::Task::onResourceInitialization ( void  )
inlinevirtual

Initialize resources.

Reimplemented from DUNE::Control::BasicAutopilot.

void Control::AUV::Attitude::Task::onResourceRelease ( void  )
inlinevirtual

Release Resources.

Reimplemented from DUNE::Control::BasicAutopilot.

References m_ca.

void Control::AUV::Attitude::Task::reset ( void  )
inlinevirtual

Member variable reset function.

Reimplemented from DUNE::Control::BasicAutopilot.

References Control::AUV::Attitude::LP_MAX_LOOPS, and m_pid.

Referenced by onUpdateParameters().

float Control::AUV::Attitude::Task::rollControl ( const double  timestep,
const IMC::EstimatedState *  msg
)
inline

Member Data Documentation

CoarseAltitude* Control::AUV::Attitude::Task::m_ca
CoarseAltitude::Arguments Control::AUV::Attitude::Task::m_ca_args

Coarse Altitude arguments.

Referenced by onResourceAcquisition(), onUpdateParameters(), and Task().

IMC::ControlParcel Control::AUV::Attitude::Task::m_ca_parcel

Parcel for coarse altitude.

Referenced by depthControl(), and onEntityReservation().

IMC::DesiredHeadingRate Control::AUV::Attitude::Task::m_hrate_ref

Heading controller heading rate reference.

Referenced by headingControl().

IMC::ControlParcel Control::AUV::Attitude::Task::m_parcels[LP_MAX_LOOPS]

PID parcels.

Referenced by initializePIDs(), onEntityReservation(), and rollControl().

DiscretePID Control::AUV::Attitude::Task::m_pid[LP_MAX_LOOPS]

PID Controllers.

Referenced by depthControl(), headingControl(), initializePIDs(), reset(), and rollControl().

IMC::DesiredPitch Control::AUV::Attitude::Task::m_pitch_ref

Depth controller pitch reference.

Referenced by depthControl().

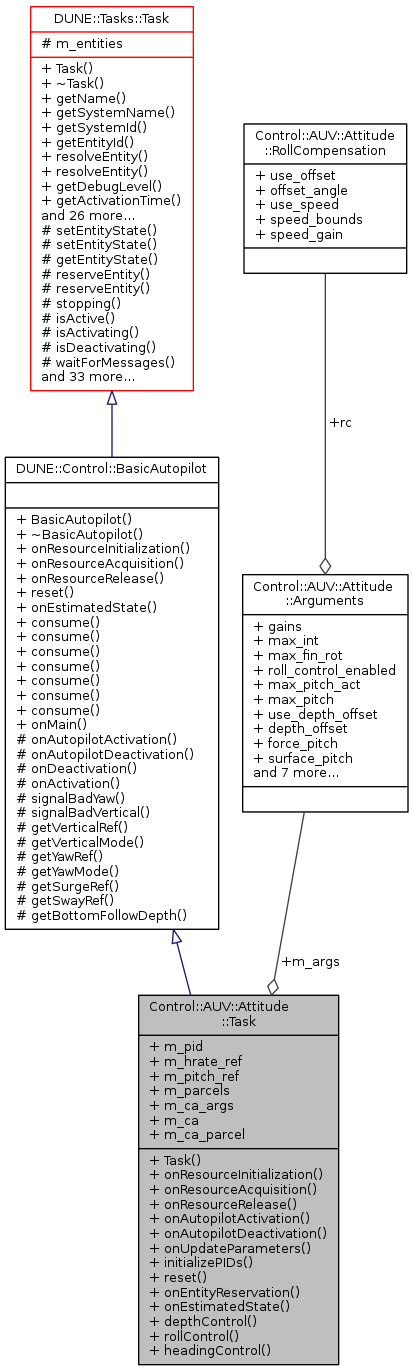

Collaboration diagram for Control::AUV::Attitude::Task:
Collaboration graph
