DUNE: Uniform Navigational Environment  2016.05.0
Actuators::LED4R::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)
 ~Task (void)
void onEntityReservation (void)
void onUpdateParameters (void)
void onResourceAcquisition (void)
void onResourceInitialization (void)
void onResourceRelease (void)
void setConfig (void)
void consume (const IMC::SetLedBrightness *msg)
void consume (const IMC::QueryLedBrightness *msg)
void clearLEDs (void)
bool setExternalDriver (bool enabled)
bool setExternalTrigger (bool enabled)
bool setPatternPulseWidth (uint16_t pwidth)
bool getConstantParameters (void)
void setBrightness (LED *led, uint8_t value)
bool getMonitors (void)
void onMain (void)
- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)
const char * getName (void) const
const char * getSystemName (void) const
unsigned int getSystemId (void) const
unsigned int getEntityId (void) const
unsigned int resolveEntity (const std::string &label) const
std::string resolveEntity (unsigned int id) const
DebugLevel getDebugLevel (void) const
uint16_t getActivationTime (void) const
uint16_t getDeactivationTime (void) const
unsigned int resolveSystemName (const std::string &name) const
const char * resolveSystemId (unsigned int id) const
void loadConfig (void)
void setPriority (unsigned int value)
unsigned int getPriority (void) const
void inf (const char *format,...) DUNE_PRINTF_FORMAT(2
void void war (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2
void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)
void dispatch (IMC::Message &msg, unsigned int flags=0)
void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)
void receive (const IMC::Message *msg)
void reserveEntities (void)
void resolveEntities (void)
void acquireResources (void)
void releaseResources (void)
void initializeResources (void)
void updateParameters (bool act_deact=true)
void writeParamsXML (std::ostream &os) const
const char * getEntityLabel (void) const
void setEntityLabel (const std::string &label)
- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)
virtual ~AbstractTask (void)
- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)
virtual ~Thread (void)
int getProcessorUsage (void)
- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)
virtual ~Runnable (void)
void start (void)
void stop (void)
void join (void)
void stopAndJoin (void)
void setPriority (Scheduler::Policy policy, unsigned priority)
State getState (void)
bool isCreated (void)
bool isStopping (void)
bool isRunning (void)
bool isStarting (void)
bool isDead (void)

Public Attributes

std::map< std::string, LED * > m_led_by_name
std::map< unsigned, LED * > m_led_by_id
SerialPort * m_uart
UCTK::Interface * m_ctl
uint16_t m_min_dur
uint16_t m_max_dur
uint16_t m_dif_dur
IMC::Current m_current
IMC::Voltage m_voltage
Entities::BasicEntity * m_mcu_ent
Counter< double > m_wdog
Arguments m_args

Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)
void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)
IMC::EntityState::StateEnum getEntityState (void) const
unsigned int reserveEntity (const std::string &label)
template<typename E >
E * reserveEntity (const std::string &label)
bool stopping (void)
bool isActive (void) const
bool isActivating (void) const
bool isDeactivating (void) const
void waitForMessages (double timeout)
void consumeMessages (void)
template<typename T >
Parameterparam (const std::string &name, T &var)
template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)
template<typename T >
bool paramChanged (T &var)
void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)
void setParamSectionEditor (const std::string &name)
template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)
template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)
template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)
template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)
void requestActivation (void)
void requestDeactivation (void)
void activate (void)
void activationFailed (const std::string &reason)
void deactivate (void)
void deactivationFailed (const std::string &reason)
virtual bool onWriteParamsXML (std::ostream &os) const
virtual void onEntityResolution (void)
virtual void onReportEntityState (void)
virtual void onRequestActivation (void)
virtual void onRequestDeactivation (void)
virtual void onActivation (void)
virtual void onDeactivation (void)
virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)
virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)
virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)
virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)
- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)
void stopImpl (void)
void joinImpl (void)
void setPriorityImpl (Scheduler::Policy policy, unsigned priority)
- Protected Attributes inherited from DUNE::Tasks::Task
< Entities::BasicEntity * >

Constructor & Destructor Documentation

Actuators::LED4R::Task::~Task ( void  )


Reimplemented from DUNE::Tasks::Task.

References clearLEDs().

Member Function Documentation

void Actuators::LED4R::Task::clearLEDs ( void  )

References m_led_by_id, and m_led_by_name.

Referenced by onUpdateParameters(), and ~Task().

void Actuators::LED4R::Task::consume ( const IMC::SetLedBrightness *  msg)

References m_led_by_name, and setBrightness().

void Actuators::LED4R::Task::consume ( const IMC::QueryLedBrightness *  msg)
bool Actuators::LED4R::Task::getConstantParameters ( void  )
bool Actuators::LED4R::Task::getMonitors ( void  )
void Actuators::LED4R::Task::onEntityReservation ( void  )

Called when the task is instructed to reserve all the entity identifiers it needs for normal execution.

See reserveEntity(). Derived classes that need to reserve entity identifiers other than that of the main entity should override this function.

Reimplemented from DUNE::Tasks::Task.

References DUNE::Tasks::Task::getEntityLabel(), and m_mcu_ent.

void Actuators::LED4R::Task::onResourceAcquisition ( void  )
void Actuators::LED4R::Task::onResourceRelease ( void  )

Release resources.

Reimplemented from DUNE::Tasks::Task.

References m_ctl, m_uart, setExternalDriver(), and setExternalTrigger().

void Actuators::LED4R::Task::onUpdateParameters ( void  )
void Actuators::LED4R::Task::setBrightness ( LED led,
uint8_t  value
bool Actuators::LED4R::Task::setExternalDriver ( bool  enabled)
bool Actuators::LED4R::Task::setExternalTrigger ( bool  enabled)
bool Actuators::LED4R::Task::setPatternPulseWidth ( uint16_t  pwidth)

Member Data Documentation

Arguments Actuators::LED4R::Task::m_args
IMC::Current Actuators::LED4R::Task::m_current


Referenced by getMonitors().

uint16_t Actuators::LED4R::Task::m_dif_dur

Difference between maximum and minimum pulse durations.

Referenced by getConstantParameters(), and setBrightness().

std::map<unsigned, LED*> Actuators::LED4R::Task::m_led_by_id

Map of LEDs by id.

Referenced by clearLEDs(), and onUpdateParameters().

std::map<std::string, LED*> Actuators::LED4R::Task::m_led_by_name

Map of LEDs by name.

Referenced by clearLEDs(), consume(), onResourceInitialization(), and onUpdateParameters().

uint16_t Actuators::LED4R::Task::m_max_dur

Maximum pulse duration in ticks.

Referenced by getConstantParameters().

Entities::BasicEntity* Actuators::LED4R::Task::m_mcu_ent

MCU entity.

Referenced by getMonitors(), and onEntityReservation().

uint16_t Actuators::LED4R::Task::m_min_dur

Minimum pulse duration in ticks.

Referenced by getConstantParameters(), and setBrightness().

SerialPort* Actuators::LED4R::Task::m_uart


Referenced by onResourceAcquisition(), and onResourceRelease().

IMC::Voltage Actuators::LED4R::Task::m_voltage


Referenced by getMonitors().

Counter<double> Actuators::LED4R::Task::m_wdog

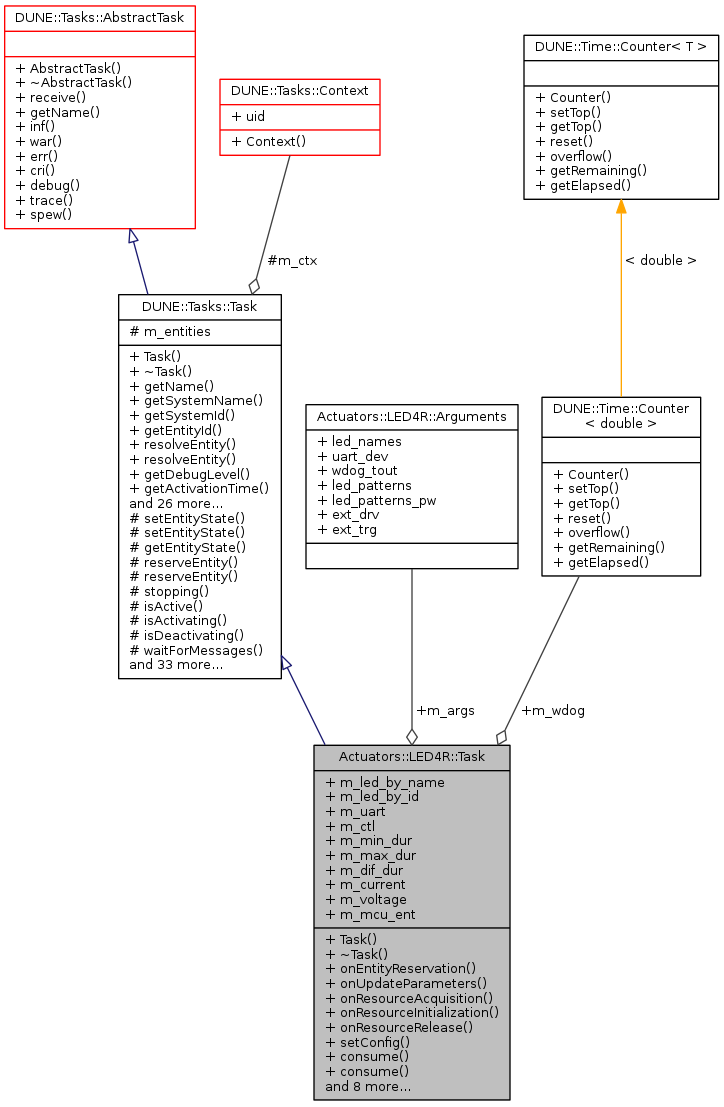

Collaboration diagram for Actuators::LED4R::Task:
Collaboration graph
