DUNE: Uniform Navigational Environment  2017.01.0
Transports::UDP::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

 ~Task (void)

void onUpdateParameters (void)

void onResourceAcquisition (void)

void onResourceRelease (void)

void consume (const IMC::Message *msg)

void consume (const IMC::Announce *msg)

void refreshContacts (void)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

unsigned getPriority (void)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

uint8_t * m_bfr

UDPSocket m_sock

std::set< NodeAddressm_static_dsts

NodeTable m_node_table

Arguments m_args

bool m_comm_limitations

bool m_underwater_comms

Listenerm_listener

Time::Counter< float > m_contacts_refresh_counter

LimitedCommsm_lcomms

MessageFilter m_filter


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}

- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual bool onWriteParamsXML (std::ostream &os) const

virtual void onEntityReservation (void)

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onResourceInitialization (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)

virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)

virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)

virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

unsigned getPriorityImpl (void)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx

std::vector
< Entities::BasicEntity * >
m_entities


Constructor & Destructor Documentation

Transports::UDP::Task::~Task ( void  )
inlinevirtual

Destructor.

Reimplemented from DUNE::Tasks::Task.

References m_bfr.

Member Function Documentation

void Transports::UDP::Task::consume ( const IMC::Announce *  msg)
inline
void Transports::UDP::Task::onMain ( void  )
inlinevirtual
void Transports::UDP::Task::onResourceRelease ( void  )
inlinevirtual

Called when the task is instructed to release resources.

Derived classes that override this function must not assume that any resource was previously acquired. This function must be implemented in such a way that it can be called at any time.

Reimplemented from DUNE::Tasks::Task.

References m_lcomms, and m_listener.

Member Data Documentation

Arguments Transports::UDP::Task::m_args
uint8_t* Transports::UDP::Task::m_bfr

Serialization buffer.

Referenced by consume(), Task(), and ~Task().

bool Transports::UDP::Task::m_comm_limitations

Simulate communication limitations.

Referenced by onResourceAcquisition(), and onUpdateParameters().

Time::Counter<float> Transports::UDP::Task::m_contacts_refresh_counter

Contact refresh counter.

Referenced by onMain(), and onUpdateParameters().

MessageFilter Transports::UDP::Task::m_filter

Message Filter.

Referenced by consume(), and onUpdateParameters().

LimitedComms* Transports::UDP::Task::m_lcomms
Listener* Transports::UDP::Task::m_listener
NodeTable Transports::UDP::Task::m_node_table

Set of destination nodes.

Referenced by consume(), onResourceAcquisition(), and refreshContacts().

UDPSocket Transports::UDP::Task::m_sock

UDP Socket.

Referenced by consume(), and onResourceAcquisition().

std::set<NodeAddress> Transports::UDP::Task::m_static_dsts

Set of static nodes.

Referenced by consume(), and onUpdateParameters().

bool Transports::UDP::Task::m_underwater_comms

Allow underwater communications when simulating limited comms.

Referenced by onUpdateParameters().

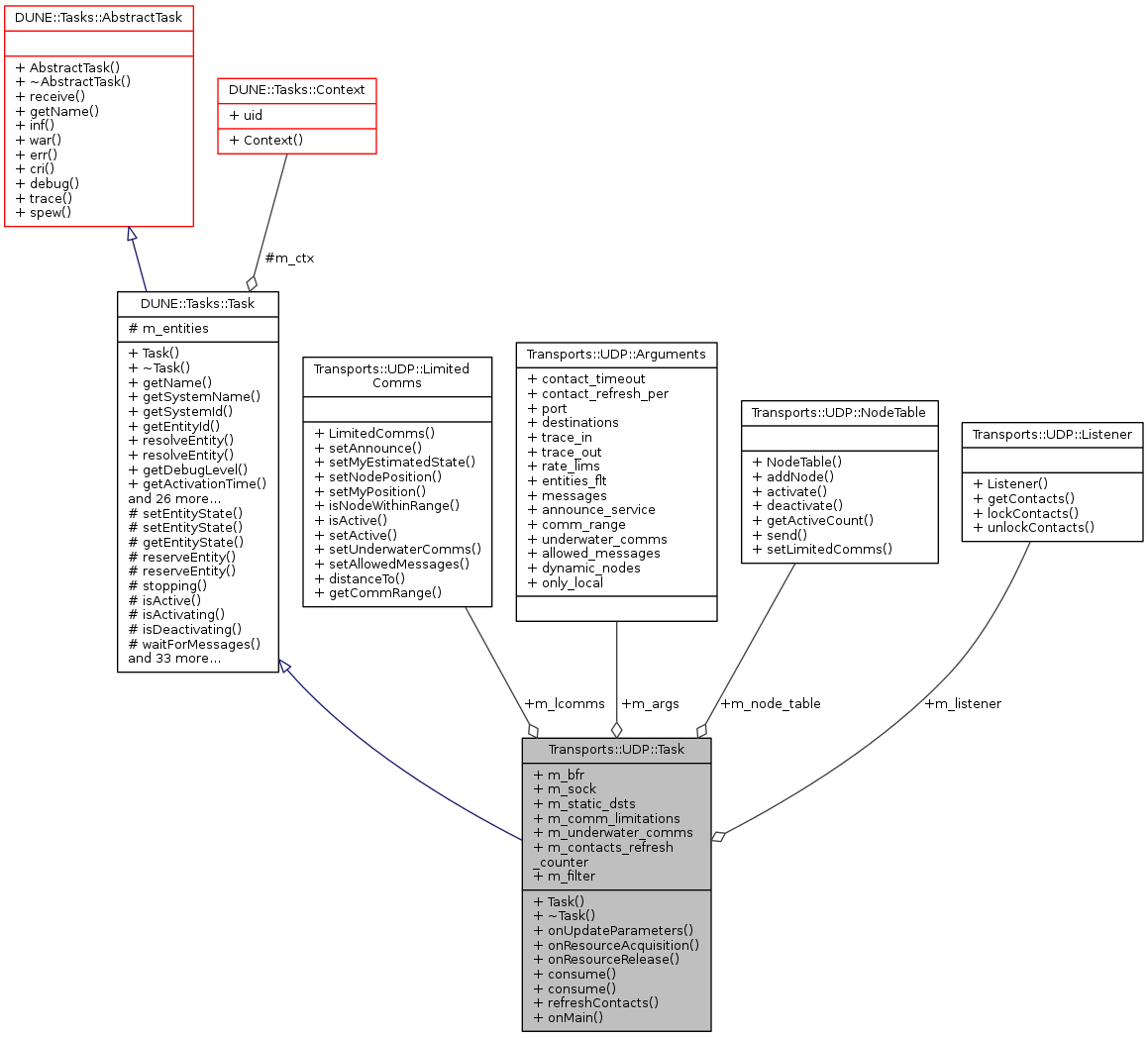

Collaboration diagram for Transports::UDP::Task:
Collaboration graph
