DUNE::IMC::Formation Class Reference

Detailed Description

Public Types

enum  TypeEnum { FC_REQUEST, FC_REPORT }

enum  OperationEnum {
  OP_START, OP_STOP, OP_READY, OP_EXECUTING,
  OP_FAILURE
}

enum  FormationReferenceFrameEnum { OP_EARTH_FIXED, OP_PATH_FIXED, OP_PATH_CURVED }


Public Member Functions

 Formation (void)

Messageclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

unsigned getVariableSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

std::string formation_name

uint8_t type

uint8_t op

std::string group_name

std::string plan_id

std::string description

uint8_t reference_frame

MessageList
< VehicleFormationParticipant
participants

fp32_t leader_bank_lim

fp32_t leader_speed_min

fp32_t leader_speed_max

fp32_t leader_alt_min

fp32_t leader_alt_max

fp32_t pos_sim_err_lim

fp32_t pos_sim_err_wrn

uint16_t pos_sim_err_timeout

fp32_t converg_max

uint16_t converg_timeout

uint16_t comms_timeout

fp32_t turb_lim

std::string custom


Protected Member Functions

void setTimeStampNested (double value__)

void setSourceNested (uint16_t value__)

void setSourceEntityNested (uint8_t value__)

void setDestinationNested (uint16_t value__)

void setDestinationEntityNested (uint8_t value__)


Additional Inherited Members

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Member Enumeration Documentation

Formation Reference Frame.

Enumerator
OP_EARTH_FIXED

Earth Fixed.

OP_PATH_FIXED

Path Fixed.

OP_PATH_CURVED

Path Curved.

Operation.

Enumerator
OP_START

Start.

OP_STOP

Stop.

OP_READY

Ready.

OP_EXECUTING

Executing.

OP_FAILURE

Failure.

Type.

Enumerator
FC_REQUEST

Request.

FC_REPORT

Report.

Constructor & Destructor Documentation

DUNE::IMC::Formation::Formation ( void  )

Member Function Documentation

Message* DUNE::IMC::Formation::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References Formation().

uint16_t DUNE::IMC::Formation::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, DUNE::IMC::deserialize(), formation_name, group_name, leader_alt_max, leader_alt_min, leader_bank_lim, leader_speed_max, leader_speed_min, op, participants, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, reference_frame, turb_lim, and type.

bool DUNE::IMC::Formation::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_alt_max, leader_alt_min, leader_bank_lim, leader_speed_max, leader_speed_min, op, participants, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, reference_frame, turb_lim, and type.

void DUNE::IMC::Formation::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_alt_max, leader_alt_min, leader_bank_lim, leader_speed_max, leader_speed_min, op, participants, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, reference_frame, DUNE::IMC::toJSON(), turb_lim, and type.

unsigned DUNE::IMC::Formation::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::Formation::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::Formation::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::Formation::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::Formation::getVariableSerializationSize ( void  ) const
inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References custom, description, formation_name, DUNE::IMC::getSerializationSize(), group_name, participants, and plan_id.

uint16_t DUNE::IMC::Formation::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, DUNE::IMC::deserialize(), formation_name, group_name, leader_alt_max, leader_alt_min, leader_bank_lim, leader_speed_max, leader_speed_min, op, participants, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, reference_frame, DUNE::IMC::reverseDeserialize(), turb_lim, and type.

void DUNE::IMC::Formation::setDestinationEntityNested ( uint8_t  value)
protectedvirtual

Set the destination entity of nested messages.

Parameters
[in]valuedestination entity.

Reimplemented from DUNE::IMC::Message.

References participants.

void DUNE::IMC::Formation::setDestinationNested ( uint16_t  value)
protectedvirtual

Set the destination address of nested messages.

Parameters
[in]valuedestination address.

Reimplemented from DUNE::IMC::Message.

References participants.

void DUNE::IMC::Formation::setSourceEntityNested ( uint8_t  value)
protectedvirtual

Set the source entity of nested messages.

Parameters
[in]valuesource entity.

Reimplemented from DUNE::IMC::Message.

References participants.

void DUNE::IMC::Formation::setSourceNested ( uint16_t  value)
protectedvirtual

Set the source address of nested messages.

Parameters
[in]valuesource address.

Reimplemented from DUNE::IMC::Message.

References participants.

void DUNE::IMC::Formation::setTimeStampNested ( double  value)
protectedvirtual

Set the timestamp of nested messages.

Parameters
[in]valuetimestamp.

Reimplemented from DUNE::IMC::Message.

References participants.

int DUNE::IMC::Formation::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

uint16_t DUNE::IMC::Formation::comms_timeout
fp32_t DUNE::IMC::Formation::converg_max
uint16_t DUNE::IMC::Formation::converg_timeout
std::string DUNE::IMC::Formation::custom
std::string DUNE::IMC::Formation::description
std::string DUNE::IMC::Formation::group_name
fp32_t DUNE::IMC::Formation::leader_alt_max
fp32_t DUNE::IMC::Formation::leader_alt_min
fp32_t DUNE::IMC::Formation::leader_bank_lim
fp32_t DUNE::IMC::Formation::leader_speed_max
fp32_t DUNE::IMC::Formation::leader_speed_min
uint8_t DUNE::IMC::Formation::op
fp32_t DUNE::IMC::Formation::pos_sim_err_lim
uint16_t DUNE::IMC::Formation::pos_sim_err_timeout
fp32_t DUNE::IMC::Formation::pos_sim_err_wrn
uint8_t DUNE::IMC::Formation::reference_frame
fp32_t DUNE::IMC::Formation::turb_lim
uint8_t DUNE::IMC::Formation::type

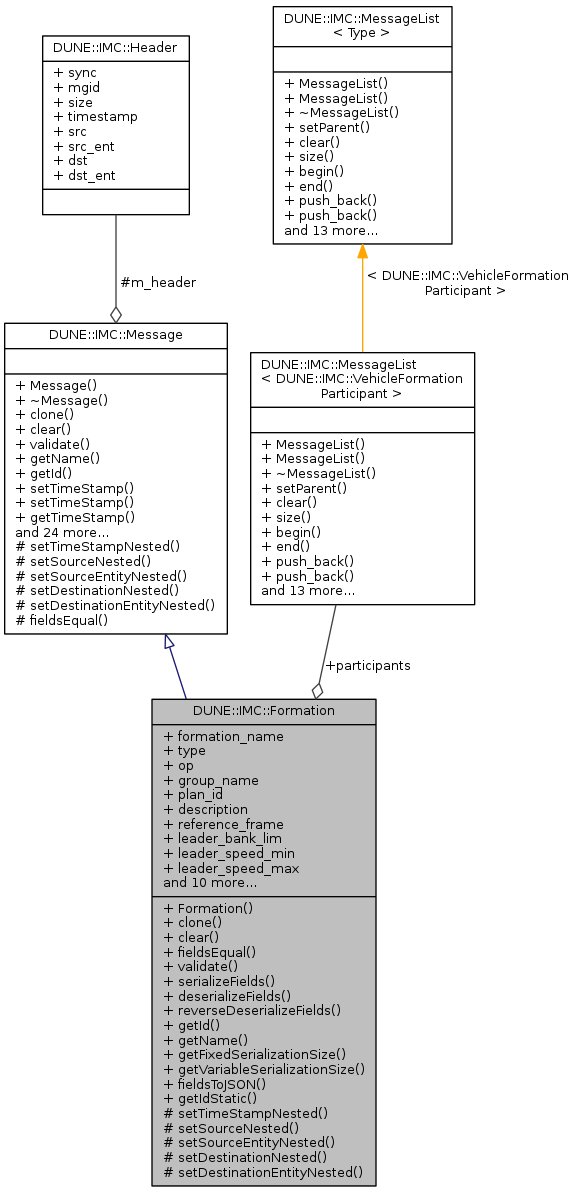

Collaboration diagram for DUNE::IMC::Formation:
Collaboration graph
