DUNE: Uniform Navigational Environment  2019.02.0
Actuators::SCRTv4::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onEntityReservation (void)

void onResourceRelease (void)

void onResourceAcquisition (void)

void onResourceInitialization (void)

void consume (const IMC::SetServoPosition *msg)

bool readConstantParameters (void)

bool readEffectiveParameters (void)

bool startContinuous (void)

bool stopContinuous (void)

LUCL::Command * waitForReply (Commands command, double timeout)

bool waitForReplyAndDiscard (Commands command, double timeout)

uint8_t convertAngleToDemand (unsigned servo, double angle)

void setServoPosition (uint8_t servo, double position)

void handleState (LUCL::Command::CommandPayload &cmd)

void handleCommand (LUCL::Command *cmd)

void dispatchStats (void)

void clearStats (void)

void onMain (void)


Public Attributes

Arguments m_args

IMC::ServoPosition m_servo_pos [c_servo_count]

IMC::Current m_servo_amp [c_servo_count]

SerialPort * m_uart

Listenerm_listener

double m_exc_min [c_servo_count]

double m_exc_max [c_servo_count]

uint8_t m_demand_res

unsigned m_stat_invalid

unsigned m_stat_error

unsigned m_stat_timeout

Counter< double > m_wdog


Constructor & Destructor Documentation

Actuators::SCRTv4::Task::Task ( const std::string &  name,
Tasks::Context &  ctx
)
inline

Member Function Documentation

void Actuators::SCRTv4::Task::clearStats ( void  )
inline
void Actuators::SCRTv4::Task::consume ( const IMC::SetServoPosition *  msg)
inline

References setServoPosition().

uint8_t Actuators::SCRTv4::Task::convertAngleToDemand ( unsigned  servo,
double  angle
)
inline
void Actuators::SCRTv4::Task::dispatchStats ( void  )
inline
void Actuators::SCRTv4::Task::handleCommand ( LUCL::Command *  cmd)
inline
void Actuators::SCRTv4::Task::handleState ( LUCL::Command::CommandPayload &  cmd)
inline
void Actuators::SCRTv4::Task::onEntityReservation ( void  )
inline

References m_servo_amp, and m_servo_pos.

void Actuators::SCRTv4::Task::onResourceAcquisition ( void  )
inline
void Actuators::SCRTv4::Task::onResourceInitialization ( void  )
inline
void Actuators::SCRTv4::Task::onResourceRelease ( void  )
inline

References m_listener, and m_uart.

bool Actuators::SCRTv4::Task::readConstantParameters ( void  )
inline
bool Actuators::SCRTv4::Task::readEffectiveParameters ( void  )
inline
void Actuators::SCRTv4::Task::setServoPosition ( uint8_t  servo,
double  position
)
inline
bool Actuators::SCRTv4::Task::startContinuous ( void  )
inline
bool Actuators::SCRTv4::Task::stopContinuous ( void  )
inline
LUCL::Command* Actuators::SCRTv4::Task::waitForReply ( Commands  command,
double  timeout
)
inline
bool Actuators::SCRTv4::Task::waitForReplyAndDiscard ( Commands  command,
double  timeout
)
inline

References waitForReply().

Referenced by startContinuous(), and stopContinuous().

Member Data Documentation

Arguments Actuators::SCRTv4::Task::m_args
uint8_t Actuators::SCRTv4::Task::m_demand_res

Demand resolution.

Referenced by convertAngleToDemand(), and readConstantParameters().

double Actuators::SCRTv4::Task::m_exc_max[c_servo_count]

Maximum excursion (º).

Referenced by convertAngleToDemand(), and readEffectiveParameters().

double Actuators::SCRTv4::Task::m_exc_min[c_servo_count]

Minimum excursion (º).

Referenced by convertAngleToDemand(), handleState(), and readEffectiveParameters().

Listener* Actuators::SCRTv4::Task::m_listener

Command listener.

Referenced by onMain(), onResourceAcquisition(), onResourceRelease(), and waitForReply().

IMC::Current Actuators::SCRTv4::Task::m_servo_amp[c_servo_count]

Current messages.

Referenced by handleState(), and onEntityReservation().

IMC::ServoPosition Actuators::SCRTv4::Task::m_servo_pos[c_servo_count]

Servo position messages.

Referenced by handleState(), and onEntityReservation().

unsigned Actuators::SCRTv4::Task::m_stat_error

Count of communication errors.

Referenced by clearStats(), dispatchStats(), and handleCommand().

unsigned Actuators::SCRTv4::Task::m_stat_invalid

Count of invalid checksums.

Referenced by clearStats(), dispatchStats(), and handleCommand().

unsigned Actuators::SCRTv4::Task::m_stat_timeout

Count of command timeouts.

Referenced by clearStats(), dispatchStats(), and waitForReply().

SerialPort* Actuators::SCRTv4::Task::m_uart
Counter<double> Actuators::SCRTv4::Task::m_wdog

Watchdog.

Referenced by handleState(), onMain(), and onResourceInitialization().

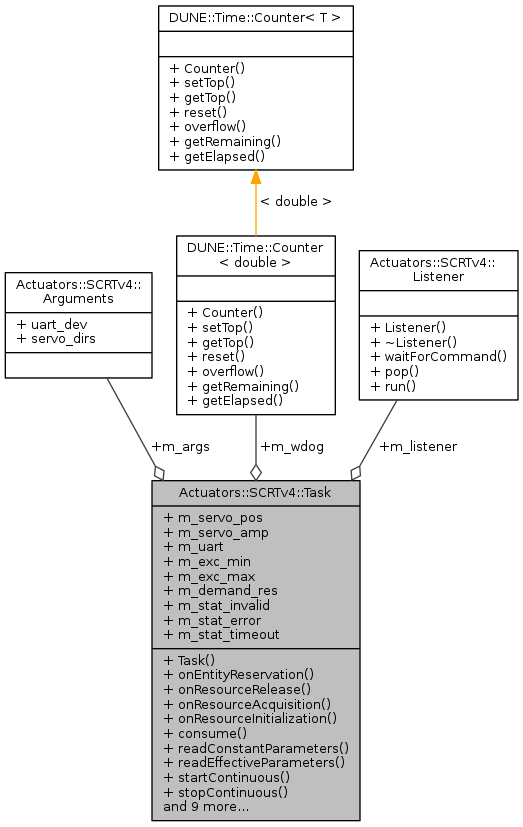

Collaboration diagram for Actuators::SCRTv4::Task:
Collaboration graph
