Detailed Description

Telemetry Message.

Public Types
enum	TypeEnum { TM_TX, TM_RX, TM_TXSTATUS }

enum	CodeEnum { TM_CODE_UNK, TM_CODE_REPORT, TM_CODE_IMC, TM_CODE_RAW }

enum	StatusEnum { TM_NONE, TM_DONE, TM_FAILED, TM_QUEUED, TM_TRANSMIT, TM_EXPIRED, TM_EMPTY, TM_INV_ADDR, TM_INV_SIZE }

enum	AcknowledgeBits { TM_NAK, TM_AK }

Public Member Functions
	TelemetryMsg (void)

TelemetryMsg *	clone (void) const

void	clear (void)

bool	fieldsEqual (const Message &msg__) const

int	validate (void) const

uint8_t *	serializeFields (uint8_t *bfr__) const

uint16_t	deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t	reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t	getId (void) const

const char *	getName (void) const

unsigned	getFixedSerializationSize (void) const

unsigned	getVariableSerializationSize (void) const

void	fieldsToJSON (std::ostream &os__, unsigned nindent__) const

Public Member Functions inherited from DUNE::IMC::Message
	Message (void)

virtual	~Message (void)

double	setTimeStamp (double ts)

double	setTimeStamp (void)

double	getTimeStamp (void) const

uint16_t	getSource (void) const

void	setSource (uint16_t src)

uint8_t	getSourceEntity (void) const

void	setSourceEntity (uint8_t src_ent)

uint16_t	getDestination (void) const

void	setDestination (uint16_t dst)

uint8_t	getDestinationEntity (void) const

void	setDestinationEntity (uint8_t dst_ent)

virtual uint16_t	getSubId (void) const

virtual void	setSubId (uint16_t subid)

virtual fp64_t	getValueFP (void) const

virtual void	setValueFP (fp64_t val)

unsigned	getSerializationSize (void) const

unsigned	getPayloadSerializationSize (void) const

void	toJSON (std::ostream &os) const

void	toText (std::ostream &os) const

bool	operator== (const Message &other) const

bool	operator!= (const Message &other) const

Static Public Member Functions
static uint16_t	getIdStatic (void)

Public Attributes
uint8_t	type

uint32_t	req_id

uint16_t	ttl

uint8_t	code

std::string	destination

std::string	source

uint8_t	acknowledge

uint8_t	status

std::vector< char >	data

Additional Inherited Members
Protected Member Functions inherited from DUNE::IMC::Message
virtual void	setTimeStampNested (double value)

virtual void	setSourceNested (uint16_t value)

virtual void	setSourceEntityNested (uint8_t value)

virtual void	setDestinationNested (uint16_t value)

virtual void	setDestinationEntityNested (uint8_t value)

Protected Attributes inherited from DUNE::IMC::Message
Header	m_header

Member Enumeration Documentation

◆ AcknowledgeBits

enum DUNE::IMC::TelemetryMsg::AcknowledgeBits

Acknowledge.

Enumerator
TM_NAK	Not acknowledge.
TM_AK	acknowledge.

◆ CodeEnum

enum DUNE::IMC::TelemetryMsg::CodeEnum

Code.

Enumerator
TM_CODE_UNK	Code unknown.
TM_CODE_REPORT	Code Report.
TM_CODE_IMC	Code IMC.
TM_CODE_RAW	Code raw.

◆ StatusEnum

enum DUNE::IMC::TelemetryMsg::StatusEnum

Status.

Enumerator
TM_NONE	Does not apply.
TM_DONE	Successfull transmission.
TM_FAILED	Error while trying to transmit message.
TM_QUEUED	Message has been queued for transmission.
TM_TRANSMIT	Message is currently being transmitted.
TM_EXPIRED	Message's TTL has expired. Transmition cancelled.
TM_EMPTY	No more messages to be transmitted or received.
TM_INV_ADDR	Invalid address.
TM_INV_SIZE	Invalid transmission size.

◆ TypeEnum

enum DUNE::IMC::TelemetryMsg::TypeEnum

Type.

Enumerator
TM_TX	Tx.
TM_RX	Rx.
TM_TXSTATUS	TxStatus.

Constructor & Destructor Documentation

◆ TelemetryMsg()

DUNE::IMC::TelemetryMsg::TelemetryMsg ( void )

References DUNE::IMC::EntityState::clear(), DUNE::IMC::Message::m_header, and DUNE::IMC::Header::mgid.

Member Function Documentation

◆ clear()

void DUNE::IMC::TelemetryMsg::clear ( void )

virtual

Reset message's fields.

Implements DUNE::IMC::Message.

◆ clone()

TelemetryMsg* DUNE::IMC::TelemetryMsg::clone ( void ) const

inlinevirtual

Retrieve a copy of the message.

Returns: message copy.

Implements DUNE::IMC::Message.

References DUNE::IMC::EntityState::clear(), DUNE::IMC::EntityState::deserializeFields(), DUNE::IMC::EntityState::fieldsEqual(), DUNE::IMC::EntityState::reverseDeserializeFields(), DUNE::IMC::EntityState::serializeFields(), and DUNE::IMC::EntityState::validate().

◆ deserializeFields()

uint16_t DUNE::IMC::TelemetryMsg::deserializeFields	(	const uint8_t *	bfr,
		uint16_t	len
	)

virtual

Deserialize message fields from a packet.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns: number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::deserialize().

◆ fieldsEqual()

bool DUNE::IMC::TelemetryMsg::fieldsEqual ( const Message & other ) const

virtual

Compare fields for equality.

Parameters

[in] other message to compare.

Returns: true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References acknowledge, code, data, destination, req_id, source, status, ttl, and type.

◆ fieldsToJSON()

void DUNE::IMC::TelemetryMsg::fieldsToJSON	(	std::ostream &	os,
		unsigned	indent_level
	)		const

virtual

Output the message fields (excluding header) in JSON format.

Parameters

os	output stream.
indent_level	number of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References DUNE::IMC::toJSON().

◆ getFixedSerializationSize()

unsigned DUNE::IMC::TelemetryMsg::getFixedSerializationSize ( void ) const

inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns: amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

◆ getId()

uint16_t DUNE::IMC::TelemetryMsg::getId ( void ) const

inlinevirtual

Retrieve message's identification number.

Returns: message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

◆ getIdStatic()

static uint16_t DUNE::IMC::TelemetryMsg::getIdStatic ( void )

inlinestatic

Referenced by getId().

◆ getName()

const char* DUNE::IMC::TelemetryMsg::getName ( void ) const

inlinevirtual

Retrieve message's name.

Returns: message's name.

Implements DUNE::IMC::Message.

◆ getVariableSerializationSize()

unsigned DUNE::IMC::TelemetryMsg::getVariableSerializationSize ( void ) const

inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns: amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References DUNE::IMC::EntityState::fieldsToJSON(), and DUNE::IMC::getSerializationSize().

◆ reverseDeserializeFields()

uint16_t DUNE::IMC::TelemetryMsg::reverseDeserializeFields	(	const uint8_t *	bfr,
		uint16_t	len
	)

virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns: number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::deserialize(), and DUNE::IMC::reverseDeserialize().

◆ serializeFields()

uint8_t * DUNE::IMC::TelemetryMsg::serializeFields ( uint8_t * bfr__ ) const

virtual

Implements DUNE::IMC::Message.

References DUNE::IMC::serialize().

◆ validate()

int DUNE::IMC::TelemetryMsg::validate ( void ) const

virtual

Validate the message's contents.

Returns: negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

◆ acknowledge

uint8_t DUNE::IMC::TelemetryMsg::acknowledge

Acknowledge.

Referenced by fieldsEqual().

◆ code

uint8_t DUNE::IMC::TelemetryMsg::code

Code.

Referenced by fieldsEqual().

◆ data

std::vector<char> DUNE::IMC::TelemetryMsg::data

Data.

Referenced by fieldsEqual().

◆ destination

std::string DUNE::IMC::TelemetryMsg::destination

Destination Identifier.

Referenced by fieldsEqual().

◆ req_id

uint32_t DUNE::IMC::TelemetryMsg::req_id

Request Identifier.

Referenced by fieldsEqual().

◆ source

std::string DUNE::IMC::TelemetryMsg::source

Source Identifier.

Referenced by fieldsEqual().

◆ status

uint8_t DUNE::IMC::TelemetryMsg::status

Status.

Referenced by fieldsEqual().

◆ ttl

uint16_t DUNE::IMC::TelemetryMsg::ttl

Time to live.

Referenced by fieldsEqual().

◆ type

uint8_t DUNE::IMC::TelemetryMsg::type

Type.

Referenced by fieldsEqual().

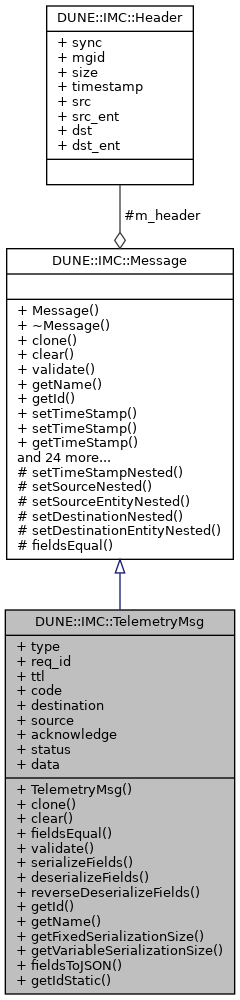

Collaboration diagram for DUNE::IMC::TelemetryMsg:
