DUNE::IMC::TransmissionRequest Class Reference

Detailed Description

Transmission Request.

Public Types

enum  CommunicationMeanEnum { CMEAN_WIFI, CMEAN_ACOUSTIC, CMEAN_SATELLITE, CMEAN_GSM }

enum  DataModeEnum { DMODE_INLINEMSG, DMODE_TEXT, DMODE_RAW }


Public Member Functions

 TransmissionRequest (void)

TransmissionRequestclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

unsigned getVariableSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

uint16_t req_id

uint8_t comm_mean

std::string destination

fp64_t deadline

uint8_t data_mode

InlineMessage< Messagemsg_data

std::string txt_data

std::vector< char > raw_data


Protected Member Functions

void setTimeStampNested (double value__)

void setSourceNested (uint16_t value__)

void setSourceEntityNested (uint8_t value__)

void setDestinationNested (uint16_t value__)

void setDestinationEntityNested (uint8_t value__)


Additional Inherited Members

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Member Enumeration Documentation

Communication Mean.

Enumerator
CMEAN_WIFI

WiFi.

CMEAN_ACOUSTIC

Acoustic.

CMEAN_SATELLITE

Satellite.

CMEAN_GSM

GSM.

Data Mode.

Enumerator
DMODE_INLINEMSG

Inline Message.

DMODE_TEXT

Text.

DMODE_RAW

Raw Data.

Constructor & Destructor Documentation

DUNE::IMC::TransmissionRequest::TransmissionRequest ( void  )

Member Function Documentation

void DUNE::IMC::TransmissionRequest::clear ( void  )
virtual

Reset message's fields.

Implements DUNE::IMC::Message.

References comm_mean, data_mode, deadline, destination, msg_data, raw_data, req_id, and txt_data.

Referenced by TransmissionRequest().

TransmissionRequest* DUNE::IMC::TransmissionRequest::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References TransmissionRequest().

uint16_t DUNE::IMC::TransmissionRequest::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References comm_mean, data_mode, deadline, DUNE::IMC::deserialize(), destination, msg_data, raw_data, req_id, and txt_data.

bool DUNE::IMC::TransmissionRequest::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References comm_mean, data_mode, deadline, destination, msg_data, raw_data, req_id, and txt_data.

void DUNE::IMC::TransmissionRequest::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References comm_mean, data_mode, deadline, destination, msg_data, raw_data, req_id, DUNE::IMC::toJSON(), and txt_data.

unsigned DUNE::IMC::TransmissionRequest::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::TransmissionRequest::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::TransmissionRequest::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::TransmissionRequest::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::TransmissionRequest::getVariableSerializationSize ( void  ) const
inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References destination, DUNE::IMC::getSerializationSize(), msg_data, raw_data, and txt_data.

uint16_t DUNE::IMC::TransmissionRequest::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References comm_mean, data_mode, deadline, DUNE::IMC::deserialize(), destination, msg_data, raw_data, req_id, DUNE::IMC::reverseDeserialize(), and txt_data.

uint8_t * DUNE::IMC::TransmissionRequest::serializeFields ( uint8_t *  bfr__) const
virtual
void DUNE::IMC::TransmissionRequest::setDestinationEntityNested ( uint8_t  value)
protectedvirtual

Set the destination entity of nested messages.

Parameters
[in]valuedestination entity.

Reimplemented from DUNE::IMC::Message.

References msg_data.

void DUNE::IMC::TransmissionRequest::setDestinationNested ( uint16_t  value)
protectedvirtual

Set the destination address of nested messages.

Parameters
[in]valuedestination address.

Reimplemented from DUNE::IMC::Message.

References msg_data.

void DUNE::IMC::TransmissionRequest::setSourceEntityNested ( uint8_t  value)
protectedvirtual

Set the source entity of nested messages.

Parameters
[in]valuesource entity.

Reimplemented from DUNE::IMC::Message.

References msg_data.

void DUNE::IMC::TransmissionRequest::setSourceNested ( uint16_t  value)
protectedvirtual

Set the source address of nested messages.

Parameters
[in]valuesource address.

Reimplemented from DUNE::IMC::Message.

References msg_data.

void DUNE::IMC::TransmissionRequest::setTimeStampNested ( double  value)
protectedvirtual

Set the timestamp of nested messages.

Parameters
[in]valuetimestamp.

Reimplemented from DUNE::IMC::Message.

References msg_data.

int DUNE::IMC::TransmissionRequest::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

uint8_t DUNE::IMC::TransmissionRequest::comm_mean
uint8_t DUNE::IMC::TransmissionRequest::data_mode
fp64_t DUNE::IMC::TransmissionRequest::deadline
std::string DUNE::IMC::TransmissionRequest::destination
std::vector<char> DUNE::IMC::TransmissionRequest::raw_data
uint16_t DUNE::IMC::TransmissionRequest::req_id
std::string DUNE::IMC::TransmissionRequest::txt_data

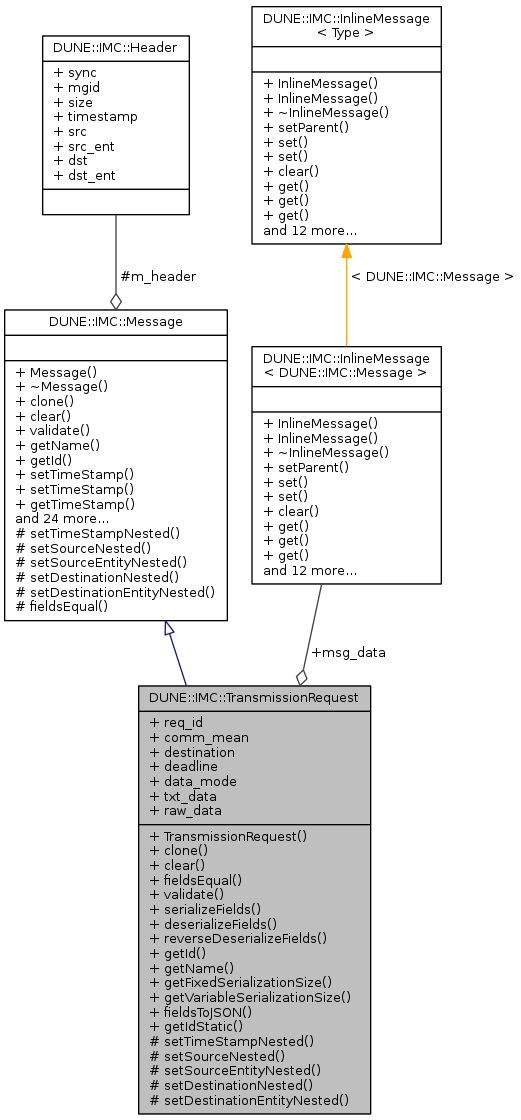

Collaboration diagram for DUNE::IMC::TransmissionRequest:
Collaboration graph
