DUNE::IMC::VehicleOperationalLimits Class Reference

Detailed Description

Vehicle Operational Limits.

Public Types

enum  ActiononthevehicleoperationallimitsEnum { OP_REQUEST, OP_SET, OP_REPORT }


Public Member Functions

 VehicleOperationalLimits (void)

VehicleOperationalLimitsclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

virtual unsigned getVariableSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

uint8_t op

fp32_t speed_min

fp32_t speed_max

fp32_t long_accel

fp32_t alt_max_msl

fp32_t dive_fraction_max

fp32_t climb_fraction_max

fp32_t bank_max

fp32_t p_max

fp32_t pitch_min

fp32_t pitch_max

fp32_t q_max

fp32_t g_min

fp32_t g_max

fp32_t g_lat_max

fp32_t rpm_min

fp32_t rpm_max

fp32_t rpm_rate_max


Additional Inherited Members

- Protected Member Functions inherited from DUNE::IMC::Message
virtual void setTimeStampNested (double value)

virtual void setSourceNested (uint16_t value)

virtual void setSourceEntityNested (uint8_t value)

virtual void setDestinationNested (uint16_t value)

virtual void setDestinationEntityNested (uint8_t value)

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Member Enumeration Documentation

Action on the vehicle operational limits.

Enumerator
OP_REQUEST

Request.

OP_SET

Set.

OP_REPORT

Report.

Constructor & Destructor Documentation

DUNE::IMC::VehicleOperationalLimits::VehicleOperationalLimits ( void  )

Member Function Documentation

void DUNE::IMC::VehicleOperationalLimits::clear ( void  )
virtual
VehicleOperationalLimits* DUNE::IMC::VehicleOperationalLimits::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References VehicleOperationalLimits().

uint16_t DUNE::IMC::VehicleOperationalLimits::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References alt_max_msl, bank_max, climb_fraction_max, DUNE::IMC::deserialize(), dive_fraction_max, g_lat_max, g_max, g_min, long_accel, op, p_max, pitch_max, pitch_min, q_max, rpm_max, rpm_min, rpm_rate_max, speed_max, and speed_min.

bool DUNE::IMC::VehicleOperationalLimits::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References alt_max_msl, bank_max, climb_fraction_max, dive_fraction_max, g_lat_max, g_max, g_min, long_accel, op, p_max, pitch_max, pitch_min, q_max, rpm_max, rpm_min, rpm_rate_max, speed_max, and speed_min.

void DUNE::IMC::VehicleOperationalLimits::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References alt_max_msl, bank_max, climb_fraction_max, dive_fraction_max, g_lat_max, g_max, g_min, long_accel, op, p_max, pitch_max, pitch_min, q_max, rpm_max, rpm_min, rpm_rate_max, speed_max, speed_min, and DUNE::IMC::toJSON().

unsigned DUNE::IMC::VehicleOperationalLimits::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::VehicleOperationalLimits::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::VehicleOperationalLimits::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::VehicleOperationalLimits::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

uint16_t DUNE::IMC::VehicleOperationalLimits::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References alt_max_msl, bank_max, climb_fraction_max, DUNE::IMC::deserialize(), dive_fraction_max, g_lat_max, g_max, g_min, long_accel, op, p_max, pitch_max, pitch_min, q_max, DUNE::IMC::reverseDeserialize(), rpm_max, rpm_min, rpm_rate_max, speed_max, and speed_min.

uint8_t * DUNE::IMC::VehicleOperationalLimits::serializeFields ( uint8_t *  bfr__) const
virtual
int DUNE::IMC::VehicleOperationalLimits::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

References alt_max_msl, bank_max, climb_fraction_max, dive_fraction_max, g_lat_max, g_max, g_min, long_accel, p_max, q_max, rpm_max, rpm_min, rpm_rate_max, speed_max, and speed_min.

Member Data Documentation

fp32_t DUNE::IMC::VehicleOperationalLimits::alt_max_msl
fp32_t DUNE::IMC::VehicleOperationalLimits::bank_max
fp32_t DUNE::IMC::VehicleOperationalLimits::climb_fraction_max
fp32_t DUNE::IMC::VehicleOperationalLimits::dive_fraction_max
fp32_t DUNE::IMC::VehicleOperationalLimits::g_lat_max
fp32_t DUNE::IMC::VehicleOperationalLimits::g_max
fp32_t DUNE::IMC::VehicleOperationalLimits::g_min
fp32_t DUNE::IMC::VehicleOperationalLimits::long_accel
uint8_t DUNE::IMC::VehicleOperationalLimits::op

Action on the vehicle operational limits.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::VehicleOperationalLimits::p_max
fp32_t DUNE::IMC::VehicleOperationalLimits::pitch_max
fp32_t DUNE::IMC::VehicleOperationalLimits::pitch_min
fp32_t DUNE::IMC::VehicleOperationalLimits::q_max
fp32_t DUNE::IMC::VehicleOperationalLimits::rpm_max
fp32_t DUNE::IMC::VehicleOperationalLimits::rpm_min
fp32_t DUNE::IMC::VehicleOperationalLimits::rpm_rate_max
fp32_t DUNE::IMC::VehicleOperationalLimits::speed_max
fp32_t DUNE::IMC::VehicleOperationalLimits::speed_min

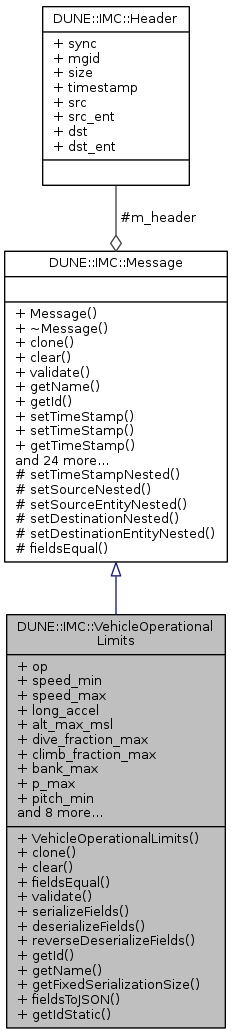

Collaboration diagram for DUNE::IMC::VehicleOperationalLimits:
Collaboration graph
