DUNE::IMC::FollowRefState Class Reference

Detailed Description

Follow Reference State.

Public Types

enum  StateEnum {
  FR_WAIT, FR_GOTO, FR_LOITER, FR_HOVER,
  FR_ELEVATOR, FR_TIMEOUT
}

enum  ProximityBits {
  PROX_FAR, PROX_XY_NEAR, PROX_Z_NEAR, PROX_XY_UNREACHABLE,
  PROX_Z_UNREACHABLE
}


Public Member Functions

 FollowRefState (void)

FollowRefStateclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

unsigned getVariableSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

uint16_t control_src

uint8_t control_ent

InlineMessage< Referencereference

uint8_t state

uint8_t proximity


Protected Member Functions

void setTimeStampNested (double value__)

void setSourceNested (uint16_t value__)

void setSourceEntityNested (uint8_t value__)

void setDestinationNested (uint16_t value__)

void setDestinationEntityNested (uint8_t value__)


Additional Inherited Members

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Member Enumeration Documentation

Proximity.

Enumerator
PROX_FAR

Far from the destination.

PROX_XY_NEAR

Near in the horizontal plane.

PROX_Z_NEAR

Near in the vertical plane.

PROX_XY_UNREACHABLE

Unreachable in the horizontal plane.

PROX_Z_UNREACHABLE

Unreachable in the vertical plane.

State.

Enumerator
FR_WAIT

Waiting for first reference.

FR_GOTO

Going towards received reference.

FR_LOITER

Loitering after arriving at the reference.

FR_HOVER

Hovering after arriving at the reference.

FR_ELEVATOR

Moving in z after arriving at the target cylinder.

FR_TIMEOUT

Controlling system timed out.

Constructor & Destructor Documentation

DUNE::IMC::FollowRefState::FollowRefState ( void  )

Member Function Documentation

void DUNE::IMC::FollowRefState::clear ( void  )
virtual

Reset message's fields.

Implements DUNE::IMC::Message.

References control_ent, control_src, proximity, reference, and state.

Referenced by FollowRefState().

FollowRefState* DUNE::IMC::FollowRefState::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References FollowRefState().

uint16_t DUNE::IMC::FollowRefState::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References control_ent, control_src, DUNE::IMC::deserialize(), proximity, reference, and state.

bool DUNE::IMC::FollowRefState::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References control_ent, control_src, proximity, reference, and state.

void DUNE::IMC::FollowRefState::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References control_ent, control_src, proximity, reference, state, and DUNE::IMC::toJSON().

unsigned DUNE::IMC::FollowRefState::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::FollowRefState::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::FollowRefState::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::FollowRefState::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::FollowRefState::getVariableSerializationSize ( void  ) const
inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References reference.

uint16_t DUNE::IMC::FollowRefState::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References control_ent, control_src, DUNE::IMC::deserialize(), proximity, reference, DUNE::IMC::reverseDeserialize(), and state.

uint8_t * DUNE::IMC::FollowRefState::serializeFields ( uint8_t *  bfr__) const
virtual
void DUNE::IMC::FollowRefState::setDestinationEntityNested ( uint8_t  value)
protectedvirtual

Set the destination entity of nested messages.

Parameters
[in]valuedestination entity.

Reimplemented from DUNE::IMC::Message.

References reference.

void DUNE::IMC::FollowRefState::setDestinationNested ( uint16_t  value)
protectedvirtual

Set the destination address of nested messages.

Parameters
[in]valuedestination address.

Reimplemented from DUNE::IMC::Message.

References reference.

void DUNE::IMC::FollowRefState::setSourceEntityNested ( uint8_t  value)
protectedvirtual

Set the source entity of nested messages.

Parameters
[in]valuesource entity.

Reimplemented from DUNE::IMC::Message.

References reference.

void DUNE::IMC::FollowRefState::setSourceNested ( uint16_t  value)
protectedvirtual

Set the source address of nested messages.

Parameters
[in]valuesource address.

Reimplemented from DUNE::IMC::Message.

References reference.

void DUNE::IMC::FollowRefState::setTimeStampNested ( double  value)
protectedvirtual

Set the timestamp of nested messages.

Parameters
[in]valuetimestamp.

Reimplemented from DUNE::IMC::Message.

References reference.

int DUNE::IMC::FollowRefState::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

uint8_t DUNE::IMC::FollowRefState::control_ent
uint16_t DUNE::IMC::FollowRefState::control_src
uint8_t DUNE::IMC::FollowRefState::proximity
uint8_t DUNE::IMC::FollowRefState::state

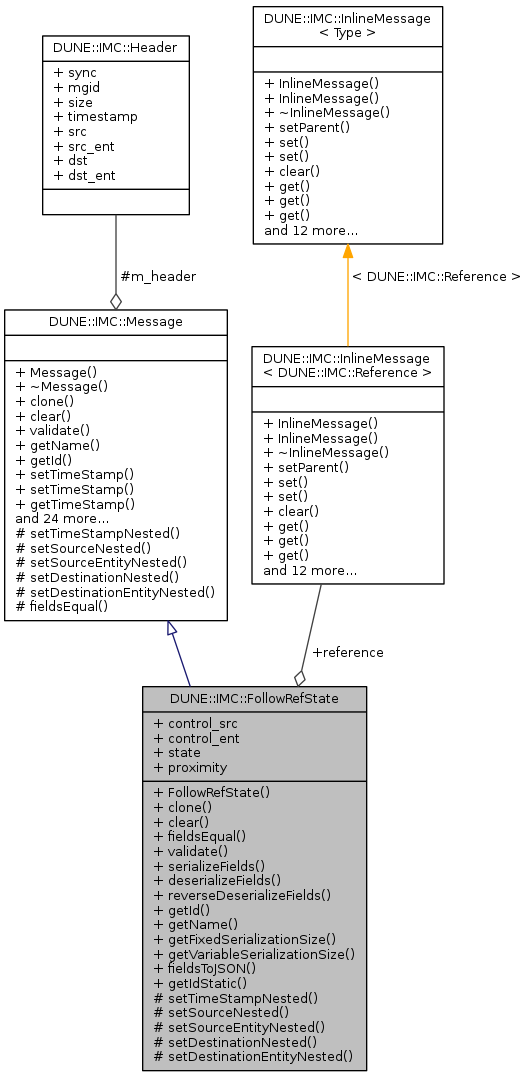

Collaboration diagram for DUNE::IMC::FollowRefState:
Collaboration graph
