DUNE::Media::MJPG::STRF Class Reference

Detailed Description

Class representing an AVI stream format chunk.

Public Member Functions
	STRF (const Properties &properties)
void	writeData (std::ostream &os)
Public Member Functions inherited from DUNE::Media::MJPG::Chunk
	Chunk (const Properties &properties, const char *id)
virtual	~Chunk (void)
void	write (std::ostream &os)
void	setData (const uint8_t *data, uint32_t data_size)
uint32_t	getSize (void) const
void	setDataSize (size_t size)
uint32_t	getDataSize (void) const

Additional Inherited Members
Protected Member Functions inherited from DUNE::Media::MJPG::Chunk
void	writeShort (const uint16_t &value, std::ostream &os)
void	writeWord (const uint32_t &value, std::ostream &os)
void	writeFourCC (const char *value, std::ostream &os)
void	writeString (const std::string &value, std::ostream &os)
Protected Attributes inherited from DUNE::Media::MJPG::Chunk
const Properties &	m_properties

Constructor & Destructor Documentation

DUNE::Media::MJPG::STRF::STRF ( const Properties &  properties )

inline

Constructor.

Parameters

properties

stream properties.

References DUNE::Media::MJPG::Chunk::setDataSize().

Member Function Documentation

void DUNE::Media::MJPG::STRF::writeData ( std::ostream &  os )

inlinevirtual

Write chunk data to output stream.

Parameters

[in]

os

output stream.

Reimplemented from DUNE::Media::MJPG::Chunk.

References DUNE::Media::MJPG::Chunk::getDataSize(), DUNE::Media::MJPG::Properties::height, DUNE::Media::MJPG::Chunk::m_properties, DUNE::Media::MJPG::Properties::width, DUNE::Media::MJPG::Chunk::writeShort(), and DUNE::Media::MJPG::Chunk::writeWord().

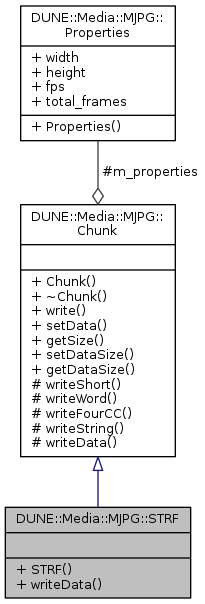

Collaboration diagram for DUNE::Media::MJPG::STRF:
