DUNE::IMC::Tachograph Class Reference

Detailed Description

Public Member Functions

 Tachograph (void)

Tachographclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

virtual unsigned getVariableSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

fp64_t timestamp_last_service

fp32_t time_next_service

fp32_t time_motor_next_service

fp32_t time_idle_ground

fp32_t time_idle_air

fp32_t time_idle_water

fp32_t time_idle_underwater

fp32_t time_idle_unknown

fp32_t time_motor_ground

fp32_t time_motor_air

fp32_t time_motor_water

fp32_t time_motor_underwater

fp32_t time_motor_unknown

int16_t rpm_min

int16_t rpm_max

fp32_t depth_max


Additional Inherited Members

- Protected Member Functions inherited from DUNE::IMC::Message
virtual void setTimeStampNested (double value)

virtual void setSourceNested (uint16_t value)

virtual void setSourceEntityNested (uint8_t value)

virtual void setDestinationNested (uint16_t value)

virtual void setDestinationEntityNested (uint8_t value)

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Constructor & Destructor Documentation

DUNE::IMC::Tachograph::Tachograph ( void  )

Member Function Documentation

void DUNE::IMC::Tachograph::clear ( void  )
virtual

Reset message's fields.

Implements DUNE::IMC::Message.

uint16_t DUNE::IMC::Tachograph::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::deserialize().

bool DUNE::IMC::Tachograph::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References depth_max, rpm_max, rpm_min, time_idle_air, time_idle_ground, time_idle_underwater, time_idle_unknown, time_idle_water, time_motor_air, time_motor_ground, time_motor_next_service, time_motor_underwater, time_motor_unknown, time_motor_water, time_next_service, and timestamp_last_service.

void DUNE::IMC::Tachograph::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References DUNE::IMC::toJSON().

unsigned DUNE::IMC::Tachograph::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References DUNE::IMC::EntityState::fieldsToJSON().

uint16_t DUNE::IMC::Tachograph::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::Tachograph::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::Tachograph::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

uint16_t DUNE::IMC::Tachograph::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References DUNE::IMC::reverseDeserialize().

uint8_t * DUNE::IMC::Tachograph::serializeFields ( uint8_t *  bfr__) const
virtual

Implements DUNE::IMC::Message.

References DUNE::IMC::serialize().

int DUNE::IMC::Tachograph::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

fp32_t DUNE::IMC::Tachograph::depth_max

Recorded Depth - Maximum.

Referenced by fieldsEqual().

int16_t DUNE::IMC::Tachograph::rpm_max

Recorded RPMs - Maximum.

Referenced by fieldsEqual().

int16_t DUNE::IMC::Tachograph::rpm_min

Recorded RPMs - Minimum.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_idle_air

Time Idle - Air.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_idle_ground

Time Idle - Ground.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_idle_underwater

Time Idle - Underwater.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_idle_unknown

Time Idle - Unknown.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_idle_water

Time Idle - Water.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_air

Time Motor - Air.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_ground

Time Motor - Ground.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_next_service

Time Motor - Next Service.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_underwater

Time Motor - Underwater.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_unknown

Time Motor - Unknown.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_motor_water

Time Motor - Water.

Referenced by fieldsEqual().

fp32_t DUNE::IMC::Tachograph::time_next_service

Time - Next Service.

Referenced by fieldsEqual().

fp64_t DUNE::IMC::Tachograph::timestamp_last_service

Last Service Timestamp.

Referenced by fieldsEqual().

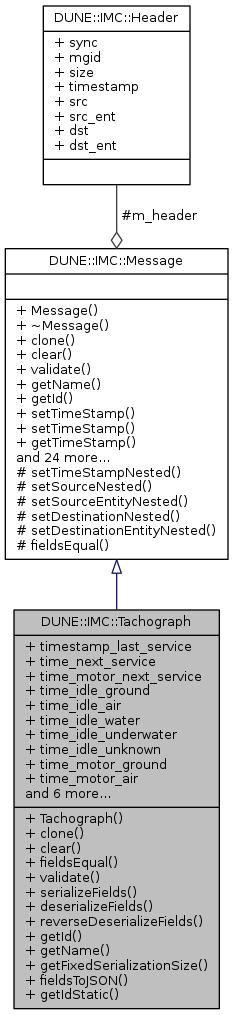

Collaboration diagram for DUNE::IMC::Tachograph:
Collaboration graph
