Actuators::MCD4R::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

 ~Task (void)

void onEntityReservation (void)

void onUpdateParameters (void)

void onResourceAcquisition (void)

void onResourceInitialization (void)

void onResourceRelease (void)

void addRemoteAction (const std::string &action, const std::string &type)

bool actCommand (ActuateCommands cmd, int8_t dir)

bool cameraPan (PanCommands dir)

bool cameraTilt (TiltCommands dir)

bool cameraZoom (ZoomCommands dir)

bool cameraFocus (FocusCommands cmd)

bool cameraExposure (ExposureCommands cmd)

bool armPulse (PulseCommands dir)

bool armFinger (FingerCommands dir)

bool toggleLaser (void)

bool dispatchState (void)

void consume (const IMC::SetLedBrightness *msg)

void consume (const IMC::QueryLedBrightness *msg)

void consume (const IMC::RemoteActions *msg)

void consume (const IMC::RemoteActionsRequest *msg)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void void dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

unsigned getPriority (void)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

SerialPort * m_uart

UCTK::Interface * m_ctl

IMC::Current m_current [SC_TOTAL]

IMC::Voltage m_voltage [SV_TOTAL]

Counter< double > m_wdog

IMC::RemoteActionsRequest m_actions

bool m_laser

Time::Counter< float > m_laser_cnt

Arguments m_args


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

Entities::BasicEntitygetLocalEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void bind (unsigned int message_id, AbstractConsumer *consumer)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual bool onWriteParamsXML (std::ostream &os) const

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)

virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)

virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)

virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

unsigned getPriorityImpl (void)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx

std::vector< Entities::BasicEntity * > m_entities


Constructor & Destructor Documentation

Actuators::MCD4R::Task::Task ( const std::string &  name,
Tasks::Context &  ctx
)
inline

Constructor.

Parameters
[in]nametask name.
[in]ctxcontext.

References Actuators::MCD4R::Arguments::laser_name, Actuators::MCD4R::Arguments::uart_dev, and Actuators::MCD4R::Arguments::wdog_tout.

Actuators::MCD4R::Task::~Task ( void  )
inlinevirtual

Destructor.

Reimplemented from DUNE::Tasks::Task.

Member Function Documentation

bool Actuators::MCD4R::Task::actCommand ( ActuateCommands  cmd,
int8_t  dir
)
inline

Generic actuation command.

Parameters
[in]cmdactuator to interface with
[in]dircommand to apply to actuator
Returns
true if successful in sending command

References Actuators::MCD4R::PKT_ID_ACTUATE.

void Actuators::MCD4R::Task::addRemoteAction ( const std::string &  action,
const std::string &  type
)
inline

Add a new remote action.

Parameters
[in]actionname of the action to add
[in]typetype of the action to add
bool Actuators::MCD4R::Task::armFinger ( FingerCommands  dir)
inline

Command arm's finger.

Parameters
[in]dirarm's finger direction
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_ARM_FINGER.

bool Actuators::MCD4R::Task::armPulse ( PulseCommands  dir)
inline

Command arm's pulse.

Parameters
[in]dirarm's pulse direction
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_ARM_PULSE.

bool Actuators::MCD4R::Task::cameraExposure ( ExposureCommands  cmd)
inline

Command camera's exposure.

Parameters
[in]cmdexposure command
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_CAM_EXPO.

bool Actuators::MCD4R::Task::cameraFocus ( FocusCommands  cmd)
inline

Command camera's focus.

Parameters
[in]cmdfocus command
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_CAM_FOCUS.

bool Actuators::MCD4R::Task::cameraPan ( PanCommands  dir)
inline

Pan camera forward, reverse or stop.

Parameters
[in]dirdirection to which it should pan
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_CAM_PAN.

bool Actuators::MCD4R::Task::cameraTilt ( TiltCommands  dir)
inline

Tilt camera forward reverse or stop.

Parameters
[in]dirdirection to which it should tilt
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_CAM_TILT.

bool Actuators::MCD4R::Task::cameraZoom ( ZoomCommands  dir)
inline

Zoom camera.

Parameters
[in]dirzoom direction
Returns
true if successful in sending command

References Actuators::MCD4R::ACT_CAM_ZOOM.

void Actuators::MCD4R::Task::consume ( const IMC::SetLedBrightness *  msg)
inline
void Actuators::MCD4R::Task::consume ( const IMC::QueryLedBrightness *  msg)
inline
void Actuators::MCD4R::Task::consume ( const IMC::RemoteActions *  msg)
inline
void Actuators::MCD4R::Task::consume ( const IMC::RemoteActionsRequest *  msg)
inline
bool Actuators::MCD4R::Task::dispatchState ( void  )
inline

Dispatch raw board state.

Returns
true if successfully dispatched state

References Actuators::MCD4R::PKT_ID_STATE, Actuators::MCD4R::SC_TOTAL, and Actuators::MCD4R::SV_TOTAL.

void Actuators::MCD4R::Task::onEntityReservation ( void  )
inlinevirtual

Called when the task is instructed to reserve all the entity identifiers it needs for normal execution.

See reserveEntity(). Derived classes that need to reserve entity identifiers other than that of the main entity should override this function.

Reimplemented from DUNE::Tasks::Task.

References Actuators::MCD4R::SC_TOTAL, and Actuators::MCD4R::SV_TOTAL.

void Actuators::MCD4R::Task::onMain ( void  )
inlinevirtual

Main loop.

Implements DUNE::Tasks::Task.

void Actuators::MCD4R::Task::onResourceAcquisition ( void  )
inlinevirtual

Acquire resources.

Reimplemented from DUNE::Tasks::Task.

References Actuators::MCD4R::Arguments::uart_dev.

void Actuators::MCD4R::Task::onResourceInitialization ( void  )
inlinevirtual

Initialize resources.

Reimplemented from DUNE::Tasks::Task.

References Actuators::MCD4R::ACT_TOTAL.

void Actuators::MCD4R::Task::onResourceRelease ( void  )
inlinevirtual

Release resources.

Reimplemented from DUNE::Tasks::Task.

void Actuators::MCD4R::Task::onUpdateParameters ( void  )
inlinevirtual

Update internal state with new parameter values.

Reimplemented from DUNE::Tasks::Task.

References Actuators::MCD4R::Arguments::wdog_tout.

bool Actuators::MCD4R::Task::toggleLaser ( void  )
inline

Toggle laser value.

Returns
true if successful in sending command

References Actuators::MCD4R::ACT_LASER.

Member Data Documentation

IMC::RemoteActionsRequest Actuators::MCD4R::Task::m_actions

Set of remote actions.

Arguments Actuators::MCD4R::Task::m_args

Task arguments.

UCTK::Interface* Actuators::MCD4R::Task::m_ctl

Control Interface.

IMC::Current Actuators::MCD4R::Task::m_current[SC_TOTAL]

Current.

bool Actuators::MCD4R::Task::m_laser

Laser state (assume off at boot)

Time::Counter<float> Actuators::MCD4R::Task::m_laser_cnt

Laser state timer.

SerialPort* Actuators::MCD4R::Task::m_uart

Control UART.

IMC::Voltage Actuators::MCD4R::Task::m_voltage[SV_TOTAL]

Voltage.

Counter<double> Actuators::MCD4R::Task::m_wdog

Watchdog.

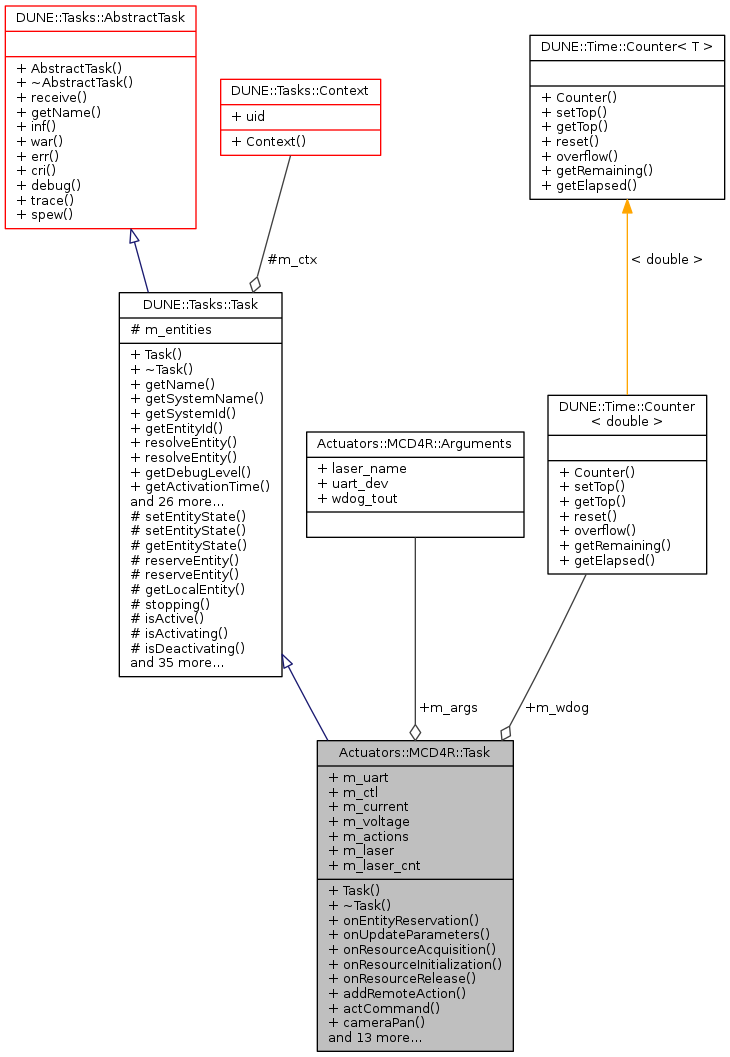

Collaboration diagram for Actuators::MCD4R::Task:
Collaboration graph
