DUNE: Uniform Navigational Environment  2016.05.0
DUNE::Control::PathController::TrackingState Struct Reference

Detailed Description

All data regarding the vehicle's state while tracking the path.

Classes

struct  Coord

struct  LoiterData

struct  TrackCoord


Public Attributes

double now

double delta

double start_time

double end_time

double eta

struct
DUNE::Control::PathController::TrackingState::Coord
start

struct
DUNE::Control::PathController::TrackingState::Coord
end

double track_bearing

double track_length

double range

double los_angle

double course

double speed

double course_error

struct
DUNE::Control::PathController::TrackingState::TrackCoord
track_pos

struct
DUNE::Control::PathController::TrackingState::TrackCoord
track_vel

struct
DUNE::Control::PathController::TrackingState::LoiterData
loiter

bool z_control: 1

bool loitering: 1

bool nearby: 1

bool cc: 1


Member Data Documentation

double DUNE::Control::PathController::TrackingState::course
double DUNE::Control::PathController::TrackingState::course_error

course error in relation to track bearing.

Referenced by DUNE::Control::PathController::consume(), and Control::Path::LOSnSMC::Task::step().

double DUNE::Control::PathController::TrackingState::delta

time since last control step invocation.

Referenced by DUNE::Control::PathController::consume().

double DUNE::Control::PathController::TrackingState::end_time
double DUNE::Control::PathController::TrackingState::eta

eta estimate.

bool DUNE::Control::PathController::TrackingState::loitering
double DUNE::Control::PathController::TrackingState::los_angle
bool DUNE::Control::PathController::TrackingState::nearby
double DUNE::Control::PathController::TrackingState::now

current time (wall clock).

Referenced by DUNE::Control::PathController::consume().

double DUNE::Control::PathController::TrackingState::range

range from current position to end.

Referenced by Control::Path::VectorField::Task::loiter(), and Control::Path::ILOS::Task::loiter().

double DUNE::Control::PathController::TrackingState::speed

current ground speed if course control enabled, body-fixed frame u speed otherwise.

Referenced by Control::Path::VectorField::Task::step(), and Control::Path::LOSnSMC::Task::step().

double DUNE::Control::PathController::TrackingState::start_time

start time (wall clock).

Referenced by DUNE::Control::PathController::consume().

double DUNE::Control::PathController::TrackingState::track_length
struct DUNE::Control::PathController::TrackingState::TrackCoord DUNE::Control::PathController::TrackingState::track_vel
bool DUNE::Control::PathController::TrackingState::z_control

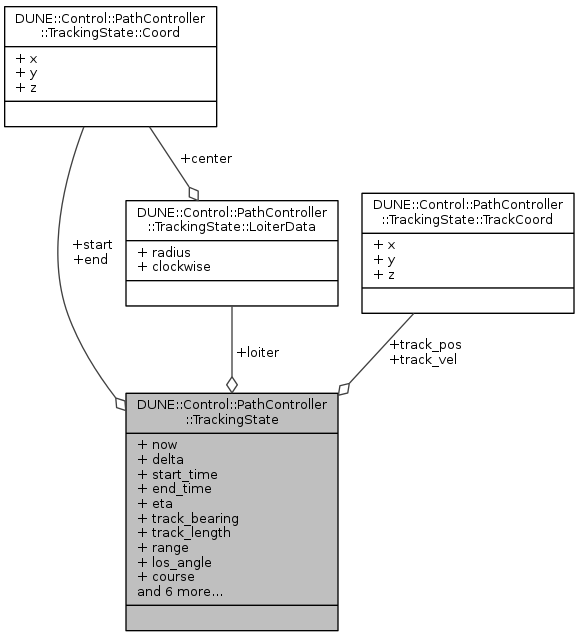

Collaboration diagram for DUNE::Control::PathController::TrackingState:
Collaboration graph
